| Display | ||
| Resolution | 4K Ultra HD 3840 × 2160 | |
| Panel Type | DLED | |
| Response Time | 6 ms | |
| Brightness | 400 cd/m² (Typ.) | |
| Others | Surface Glass: 3.2 mm Anti-Glare Glass Surface Haze: 25%Haze Glass Bonding Method: Zero Lamination Display Area: 1428.48mmx803.52mm Working Duration: 7 × 16H Transmittance: 88% ± 3 |
|
| Touch System | ||
| Touch Point | 45 point multi-touch | |
| Touch Response Time | ＜ 5 ms | |
| Others | Minimum Touch Object: ≥ 2 mm Touch Precision: ± 1 mm (≥ 90% touching area) |
|
| Interpolation Resolution | 32768 × 32768 | |
| Operating System | ||
| System Version | Android 13.0 | |
| CPU | Quad-core Cortex-A76 × 4（2.4GHz）and quad-core Cortex-A55 × 4（1.8GHz) | |
| GPU | Mali-G610 MC4 | |
| RAM | 8GB | |
| ROM | 128GB | |
| Connectivity | ||
| HDMI | 3x HDMI 2.0 Input 1x HDMI 2.0 Output |
|
| VGA | 1x VGA | |
| USB | USB 3.0 × 4 USB 2.0 × 1 Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
|
| LAN | 1x RJ45 | |
| PC Audio In | 1x 3.5mm Audio 1x SPDIF |
|
| Audio out | 1x 3.5mm Audio 2x12W 2.0 Stereo Speaker |
|
| RS232 | 1x RS232 | |
| Physical Specification | ||
| Active Screen Size | 86 Inch | |
| Dimensions | 2197 mm × 284 mm × 1376mm | |
| Weight | 65.13 kg | |
| Power | 100 to 240 VAC, 50/60 Hz | |
| Standby Power | ≤ 0.5 W | |
| Power Requirements | < 107W | |
| Others | Camera: Pixel 48MP for Photos & 8 MP for Video Camera Function: Support intelligent switching between Android system, OPS, and PC. Field Angle: 120°(diagonal), 110°(horizontal), 75°(vertical) Distortion: ≤2.5% Camera Resolution Ratio: Up to 4K Microphone: Omni-directional 8-array layout Mic Function: Echo reduction and smart noise-cancellation Voice Distance: 12 m Sampling Rate: 32 K Mic Sampling Rate: 16 bit Loudspeaker: Built-in 2 ×20 W+25W loudspeaker; Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 NFC: Support screen mirroring by Android phones Light Sensor: Yes |
|
| Warranty | ||
| Warranty | 3 Years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue) | |

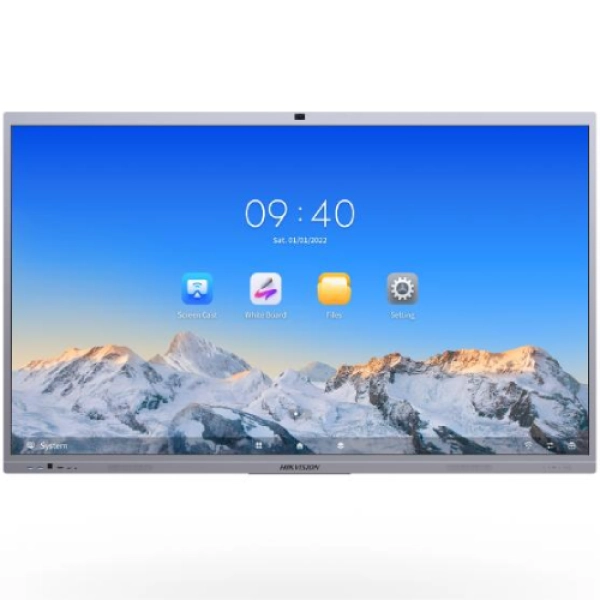

The Hikvision DS-D5C86RB-B 86 Inch 4K UHD Interactive Flat Panel Display is a high-performance smart collaboration solution built for large classrooms, corporate boardrooms, and professional conferencing environments. Equipped with an advanced 8MP AI camera and 8-array microphone system, this interactive display ensures clear video and crystal-clear audio for seamless hybrid meetings and remote learning.
Featuring a massive 86-inch 4K Ultra HD display, responsive multi-touch technology, and a powerful Android operating system, the DS-D5C86RB-B enables smooth presentations, real-time annotation, and effortless wireless content sharing. Its all-in-one design reduces dependency on external devices, offering a clean and efficient collaboration setup.
Large 86-inch 4K UHD (3840 × 2160) interactive flat panel
Built-in Android OS for smooth performance and app compatibility
8MP AI camera for intelligent video conferencing
8-array microphone with noise reduction and echo cancellation
Multi-touch support for interactive teaching and collaboration
Ideal for large meeting rooms, classrooms, and training halls
Professional-grade build quality for long-term daily use
The Hikvision DS-D5C86RB-B is designed to enhance communication in large spaces. The AI-powered camera automatically frames participants, while the 8-array microphone system captures voices clearly from different directions. The expansive 4K screen ensures content remains sharp and visible from all seating positions, improving engagement during meetings and lessons.
With Android-based functionality, users can annotate, present, and collaborate instantly without connecting external PCs, streamlining workflows and saving valuable time.
Smart classrooms and digital learning environments
Corporate boardrooms and executive meeting rooms
Video conferencing and hybrid collaboration
Training centers and seminar halls
