| Display | ||
| Resolution | 4K Ultra HD 3840 × 2160 | |
| Panel Type | DLED | |
| Aspect Ration | 16:9 | |
| Response Time | 5ms | |
| Brightness | 400 cd/m² (Typ.) | |
| Contrast Ratio | 5000:1 (Static), 30,000:1 (Dynamic) | |
| Life Time | 50,000 hours | |
| Others | Surface Haze: 25% Haze Display Area: 1895.04 x 1065.96mm Working Duration: 7 × 16H Surface Hardness: 9H (Pencil) 7 (Mohs) Surface Glass: 3.2 mm Anti-Glare Glass Transmittance: 88% ± 3 |
|
| Touch System | ||
| Touch Point | 40-point multi-touch | |
| Touch Response Time | ＜ 5 ms | |
| Surface Hardness | 9H | |
| Others | Minimum Touch Object: ≥ 2 mm (≥ 90% touching area) Touch Precision: ± 1 mm (≥ 90% touching area) |
|
| Interpolation Resolution | 32767 × 32767 | |
| Operating System | ||
| System Version | Android 13.0 | |
| CPU | Cortex-A55 × 4 (1.92GHz) | |
| GPU | Mali-G52 MP2 (2EE) | |
| RAM | 8gb | |
| ROM | 128gb | |
| Connectivity | ||
| HDMI | HDMI In (HDMI 2.0) ×2 | |
| USB | USB 3.0 × 3, USB 2.0 × 2, Type-C × 1 (Type-C supports USB 2.0) | |
| LAN | LAN (100 Mbps) × 2 | |
| PC Audio In | Audio In × 1 | |
| Audio out | Audio Out × 1 | |
| RS232 | 1x RS232 | |
| Physical Specification | ||
| Active Screen Size | 86" | |
| Dimensions | 1960.44 x 1177.74 x 82.5mm | |
| Weight | 61.5 kg | |
| Power | 100 to 240 VAC, 50/60 Hz | |
| Standby Power | ≤ 0.5 W | |
| Power Requirements | Max. Consumption: 217 W Average Consumption: 175 W |
|
| Others | WIFI AP&Station，2.4G/5G WIFI AP：IEEE 802.11 a/b/g/n/ac 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP WIFI Station：IEEE 802.11 a/b/g/n/ac/ax 1 × 1 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP Loudspeaker: Built-in 2 × 20 W Speaker Frequency: 200-20Khz Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.2 NFC Support card reader Light Sensor: Yes |
|
| Warranty | ||
| Warranty | 3 Years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue) | |

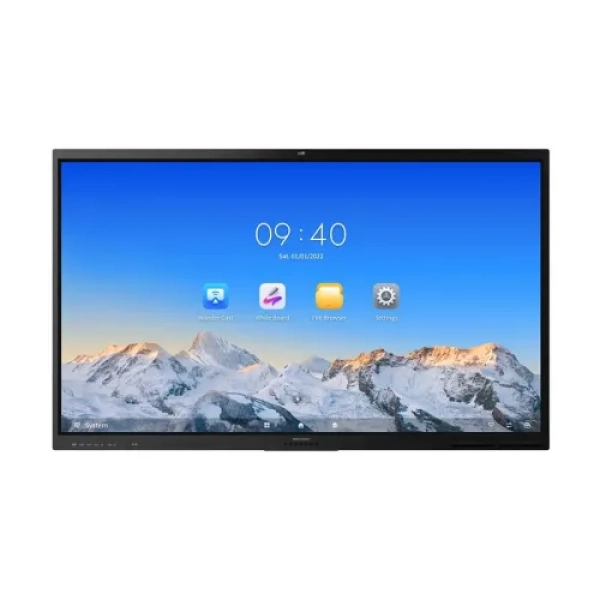

The Hikvision DS-D5B86RB/FL 86 Inch 4K UHD Interactive Flat Panel Display is a premium large-format collaboration solution designed for smart classrooms, corporate boardrooms, training centers, and conference halls. Featuring an expansive 86-inch 4K Ultra HD display, this interactive flat panel delivers exceptional visual clarity, ensuring presentations and learning materials remain sharp and easy to view even in large spaces.
Powered by a responsive Android operating system, the DS-D5B86RB/FL enables seamless content sharing, real-time annotation, and interactive collaboration without the need for external devices. Its professional-grade design and smooth touch performance make it a reliable choice for daily intensive use in educational and business environments.
Large 86-inch 4K UHD (3840 × 2160) interactive display
Built-in Android OS for smooth operation and app support
Multi-touch technology for interactive presentations and teaching
Ideal for large classrooms, meeting rooms, and auditoriums
Clear visuals with wide viewing angles
Durable and professional design for long-term use
The Hikvision DS-D5B86RB/FL is built to enhance engagement and productivity in large rooms. The ultra-large 86-inch screen ensures visibility from every corner, while the Android platform allows users to present, annotate, and collaborate instantly. This all-in-one interactive solution reduces setup complexity and improves workflow efficiency, making meetings and lessons more effective.
Designed for reliability and performance, this interactive flat panel supports continuous daily operation, offering excellent value for institutions and enterprises seeking a future-ready display solution.
Smart classrooms and digital learning environments
Corporate meeting rooms and boardrooms
Training and seminar halls
Professional presentation spaces
