| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek ALC1220-VB CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 6 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 2 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | 1 x DisplayPort | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

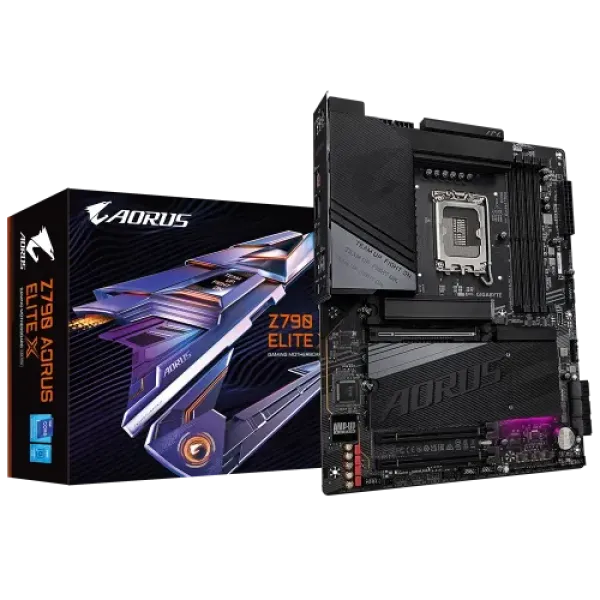

The GIGABYTE Z790 AORUS ELITE X ATX Motherboard delivers unparalleled performance, stability, and next-gen connectivity, making it the perfect choice for gamers, PC enthusiasts, and content creators. Engineered for 14th, 13th, and 12th Gen Intel Core Processors (LGA 1700 socket), this high-end motherboard is optimized for lightning-fast data transfer, high-speed networking, and extreme overclocking.
With support for up to 8266MHz DDR5 memory (overclocked) and four DIMM slots allowing a total capacity of 192GB, the Z790 AORUS ELITE X ensures seamless multitasking, enhanced gaming performance, and accelerated workloads. It features PCIe 5.0 slots, providing double the bandwidth of PCIe 4.0, ensuring faster GPU, SSD, and expansion card performance.
For fast and reliable wired networking, this motherboard is equipped with an Intel 2.5GbE LAN chip, allowing low-latency online gaming, high-speed downloads, and ultra-smooth streaming. The Z790 AORUS ELITE X also includes multiple M.2 slots with PCIe 4.0 support, enabling blazing-fast NVMe SSD speeds to enhance boot times and game loading speeds.
Connectivity is another strong point, featuring multiple USB ports, HDMI, and DisplayPort outputs, ensuring smooth multi-monitor setups and high-resolution display support. Built with high-quality VRMs, advanced thermal solutions, and premium capacitors, the Z790 AORUS ELITE X guarantees long-term stability and superior heat dissipation, making it ideal for overclocking and demanding workloads.
If you're looking for a top-tier motherboard that delivers next-gen performance, robust connectivity, and future-proof features, the GIGABYTE Z790 AORUS ELITE X ATX Motherboard is an excellent choice for high-performance PC builds.
