| Basic Information | ||
| Supported CPU | Support 3rd Generation AMD Ryzen Threadripper processors |
|
| Chipset | AMD TRX40 |
|
| Form Factor | XL-ATX Form Factor; 32.5cm x 27.5cm | |
| BIOS | 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Expansion Slots | ||
| PCI | 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 8 x DIMM | |
| Supported Memory | Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Quad Channel memory architecture |
|
| Maximum Memory | 256 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Support for AMD Quad-GPU CrossFire and 4-Way/ 3-Way/ 2-Way AMD CrossFire technologies Support for NVIDIA Quad-GPU SLI and 4-Way/ 3-Way/ 2-Way NVIDIA SLI technologies |
|
| Connector & Ports | ||
| USB (s) | CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/ 1.1 ports available through the internal USB headers (with the included front USB header extention cable) Chipset+ASMedia USB 3.2 Gen 2 Controller: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
|
| LAN Port (s) | Intel 10GbE LAN chip (10 Gbit/ 5 Gbit/ 2.5 Gbit/ 1 Gbit/ 100 Mbit), supporting 2 RJ-45 ports | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2Q) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/ 22110 SATA and PCIe 4.0 x4/ x2 SSD support) (M2P) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/ x2 SSD support) (M2C_SOCKET) 8 x SATA 6Gb/s connectors (SATA3 0~7) Support for RAID 0, RAID 1, and RAID 10 ASMedia SATA 6Gb/s Controller: 2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only |
|
| Audio | Realtek ALC4050H codec+Realtek ALC1220-VB codec (rear panel audio) Realtek ALC4050H codec+ESS SABRE9218 DAC (front panel audio) Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC_PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 3 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 10 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x GIGABYTE add-in card connector 1 x noise detection header 1 x power button 1 x reset button 2 x temperature sensor headers 2 x BIOS switches Voltage Measurement Points |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Wireless Communication module: Intel Wi-Fi 6 AX200 Wi-Fi 802.11a/ b/ g/ n/ ac/ ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

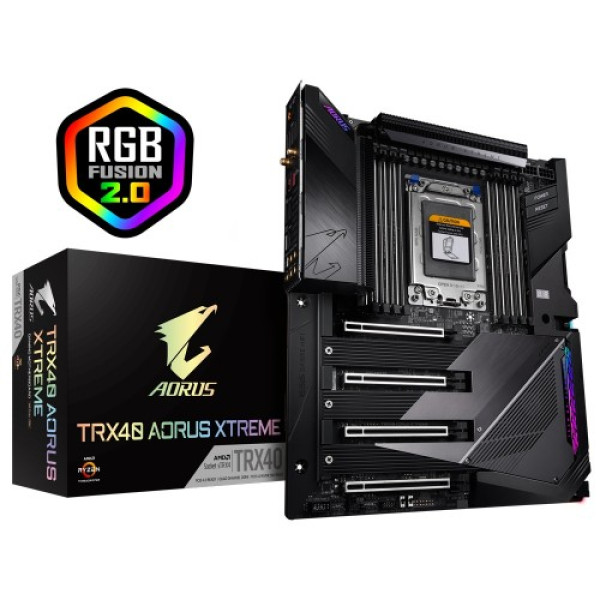

The GIGABYTE TRX40 AORUS Xtreme AMD XL-ATX Motherboard is engineered for maximum performance, offering exceptional support for 3rd Gen AMD Ryzen Threadripper processors. With Intel Wi-Fi 6 (802.11ax) and Bluetooth 5, this motherboard ensures fast and reliable wireless connectivity. The exclusive AORUS Gen4 AIC Adapter maximizes data transfer speeds, ensuring that your system stays ahead of the curve. Built with a 16+3 Phases Infineon Digital VRM Solution, the TRX40 AORUS Xtreme delivers stable and efficient power even under extreme overclocking conditions. Whether you’re gaming, editing videos, or running demanding applications, this motherboard is built for power users who need the best in speed, performance, and connectivity.
