| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU |
|
| Chipset | Intel H610 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DDR DIMM sockets | |
| Supported Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

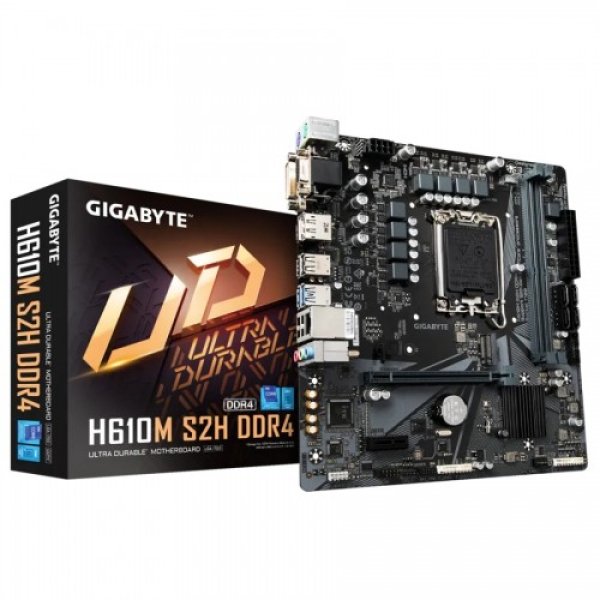

The GIGABYTE H610M S2H DDR4 is an affordable and dependable micro-ATX motherboard built for Intel’s 12th and 13th Gen processors. With support for DDR4 memory, essential connectivity, and a compact form factor, this board is ideal for everyday computing, home builds, office PCs, and light-to-mid-range gaming systems.
Equipped with the Intel H610 chipset and LGA 1700 socket, the H610M S2H supports Intel 12th and 13th Gen Core, Pentium, and Celeron processors — delivering reliable performance for general tasks and productivity.
The motherboard supports DDR4 RAM, offering cost-effective memory compatibility and sufficient performance for multitasking, browsing, media playback, and everyday applications.
Featuring PCIe slots for discrete graphics cards or expansion cards and multiple SATA ports for storage drives, this motherboard provides flexible upgrade paths. Some models also include an M.2 slot for faster NVMe SSD storage (check exact specs for your board).
You’ll find a range of USB ports, HDMI/D-Sub display outputs, audio connectors, and LAN for network connectivity — supporting your peripherals and devices with ease.
Its compact micro-ATX (mATX) size makes the board suitable for small and mid-sized PC cases, ideal for space-saving builds and budget desktops.
Built by GIGABYTE, a trusted name in PC hardware, the H610M S2H delivers dependable and stable performance for office tasks, web browsing, media consumption, and light gaming when paired with the right components.
It supports Intel 12th and 13th Gen Core, Pentium, and Celeron processors using the LGA 1700 socket.
It supports DDR4 memory modules.
Some versions include M.2 slot(s) for NVMe SSDs — check the specific product variant for confirmation.
It is a micro-ATX (mATX) motherboard suitable for compact cases.
Yes, it is suitable for light to mid-range gaming when paired with a compatible CPU and GPU.
Yes — if using a compatible Intel CPU with integrated graphics, you can use the onboard display outputs (HDMI/D-Sub) without a dedicated GPU.
Get specific details about this product from customers who own it.
