Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳46,750
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000, 8000, 7000 Series Processors |
|
| Chipset | AMD B850 | |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek ALC4080 CODEC High Definition Audio 2-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. |
|
| M.2 Socket | 2 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DDR5 DIMM | |
| Supported Memory | Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules | |
| Maximum Memory | up to 128 GB (64 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| Audio | Realtek ALC4080 CODEC High Definition Audio 2-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header Back Panel Connectors 1 x Q-Flash Plus button 1 x HDMI port* 2 x antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 Years |
|

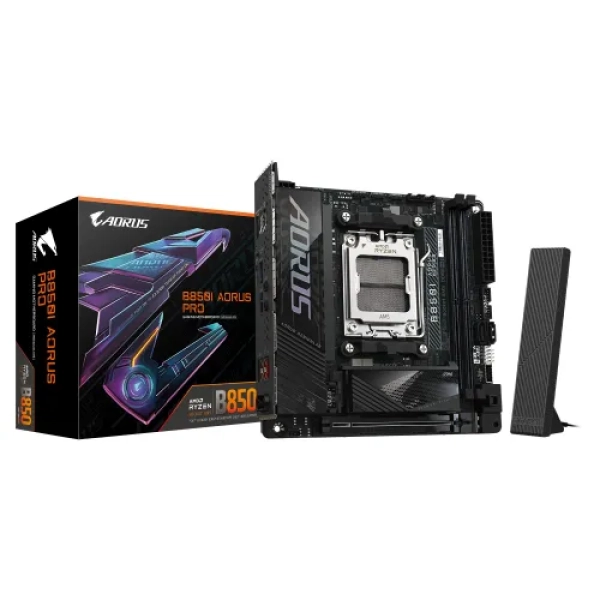

The GIGABYTE B850I AORUS PRO is a premium Mini-ITX motherboard built for users who want powerful performance in a compact form factor. Designed with the AMD B850 chipset and AM5 socket, it supports the latest AMD Ryzen 7000, 8000, and 9000 series processors, making it ideal for modern gaming and high-performance PC builds.
With support for DDR5 memory up to 8400MHz (OC) and up to 128GB capacity, this motherboard ensures ultra-fast performance for multitasking, gaming, and productivity workloads. The advanced 8+2+1 phase VRM design provides stable power delivery, even under heavy loads.
For storage and expansion, it features PCIe 5.0 x16 slot for next-gen GPUs and dual M.2 slots (PCIe 5.0 + PCIe 4.0), allowing lightning-fast SSD performance. This ensures your system is future-ready for high-speed gaming and content creation.
Connectivity is another strong point, with Wi-Fi 7, Bluetooth 5.4, and 2.5GbE LAN, delivering ultra-fast networking speeds for gaming and streaming. It also includes USB 3.2 Gen2 Type-C, HDMI 2.1 output, and advanced cooling features like Smart Fan 6 for optimal thermal performance.
Overall, the GIGABYTE B850I AORUS PRO is a powerful and feature-rich Mini-ITX motherboard that brings flagship-level features into a compact build, making it perfect for small form factor gaming PCs.
The B850I AORUS PRO is ideal for users who want top-tier performance in a compact Mini-ITX build. With next-gen connectivity, PCIe 5.0 support, and high-speed DDR5 memory, it delivers excellent performance for gaming, streaming, and professional workloads while saving space.
Q1: What processors are supported?
A: It supports AMD Ryzen 7000, 8000, and 9000 series processors with AM5 socket.
Q2: Does it support DDR5 RAM?
A: Yes, it supports DDR5 memory up to 8400MHz (overclocked).
Q3: Is it good for small PC builds?
A: Yes, its Mini-ITX form factor is perfect for compact and SFF (Small Form Factor) builds.
Get specific details about this product from customers who own it.
