Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳22,000
| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors/ AMD Ryzen 8000 Series Processors/ AMD Ryzen 7000 Series Processors |
|
| Chipset | AMD B840 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 4.0 x16 mode AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs: |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. Support for up to triple-display at the same time |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | USB CPU: - 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel - 1 x USB 3.2 Gen 1 port on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C port, with USB 3.2 Gen 1 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 port available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), , integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type, type 25110/22110/2580/2280 SSDs: AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzenâ„¢ 9000 Series Processors. |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) | |
| Warranty Details | ||
| Warranty Details | 3 Year | |

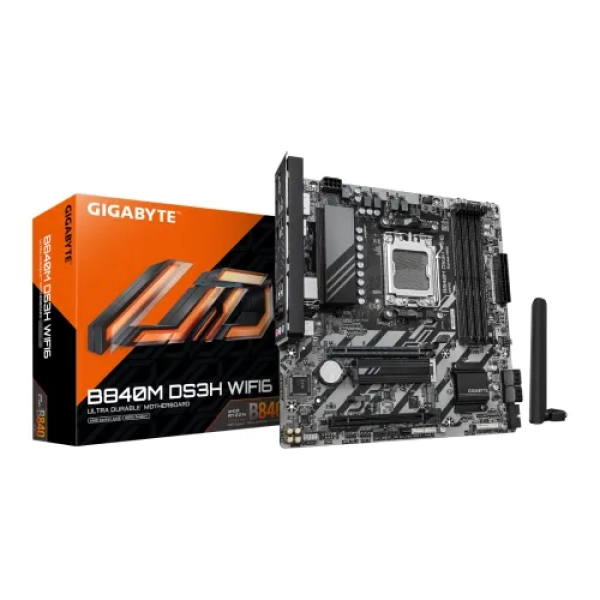

The GIGABYTE B840M DS3H WIFI6 is a budget-friendly Micro ATX motherboard designed for users who want to enter the AMD AM5 platform without spending too much. Built with the AMD B840 chipset and AM5 socket, it supports Ryzen 7000, 8000, and 9000 series processors, making it a future-ready option for modern PC builds.
It features 4 DDR5 DIMM slots supporting up to 256GB RAM, with speeds up to 8200MHz (OC), ensuring smooth multitasking and decent performance for gaming and productivity tasks.
For expansion, the motherboard includes a PCIe 4.0 x16 slot for graphics cards and an additional PCIe 3.0 slot for other devices. Storage options include 2× PCIe 4.0 M.2 slots and 4× SATA ports, allowing fast SSD performance and flexible storage setup.
Connectivity is strong for this price range, offering Wi-Fi 6, Bluetooth 5.3, and 2.5GbE LAN, ensuring fast and stable internet for gaming and streaming. It also includes USB Type-C, HDMI 2.1, and dual DisplayPort outputs for modern connectivity needs.
The board is equipped with Smart Fan 6 cooling system, VRM heatsinks, and M.2 thermal guard, helping maintain stable temperatures during regular workloads.
Overall, this motherboard is a solid choice for entry-level AM5 builds, offering essential features, good connectivity, and reliable performance at an affordable price.
The B840M DS3H WIFI6 is perfect for users who want a low-cost AM5 motherboard with modern features. It provides reliable performance, good connectivity, and DDR5 support—ideal for budget gaming PCs, office setups, and entry-level builds.
Q1: What processors are supported?
A: It supports AMD Ryzen 7000, 8000, and 9000 series processors with AM5 socket.
Q2: Does it support DDR5 RAM?
A: Yes, it supports DDR5 memory up to 8200MHz (overclocked).
Q3: Does it have built-in Wi-Fi?
A: Yes, it includes Wi-Fi 6 and Bluetooth 5.3 for wireless connectivity.
Get specific details about this product from customers who own it.
