Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳20,190
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Wireless Communication module | Realtek Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard |
|
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Warranty Details | ||
| Warranty Details | 3 years Warranty | |
High-performance Intel B760 chipset motherboard with DDR5 support, WiFi 6 connectivity, and reliable durability for modern PC builds

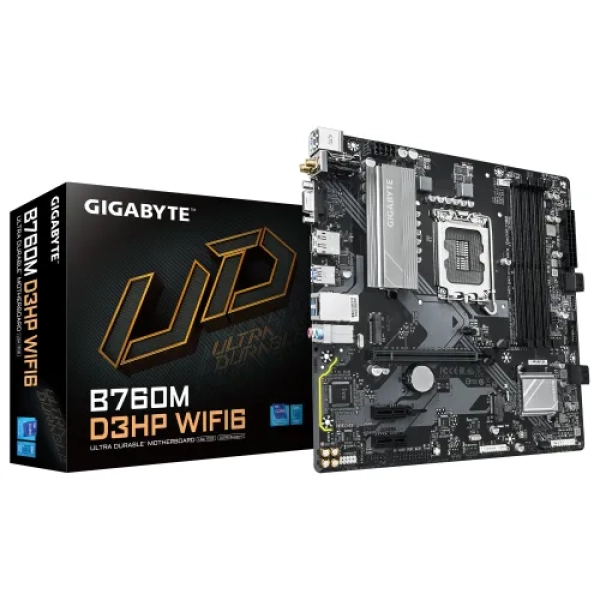

The GIGABYTE B760M D3HP WIFI6 DDR5 mATX Motherboard is a powerful and future-ready solution designed for modern PC builders who demand performance, stability, and connectivity. Built on the Intel B760 chipset, this motherboard fully supports the latest Intel 12th, 13th, and 14th generation processors, making it a perfect choice for gaming, productivity, and multitasking setups.
With DDR5 memory support, this motherboard ensures faster data processing speeds and improved efficiency compared to previous generations. Whether you are building a high-performance gaming rig or a professional workstation, DDR5 compatibility provides the bandwidth needed for demanding applications.
The integrated WiFi 6 technology delivers faster, more stable wireless connectivity with reduced latency, ensuring smooth online gaming, streaming, and browsing experiences. Additionally, PCIe 4.0 support allows you to take advantage of the latest graphics cards and high-speed SSDs for maximum performance.
Storage is flexible and fast with dual M.2 slots, enabling lightning-fast NVMe SSD performance. Combined with multiple USB 3.2 ports, you get excellent data transfer speeds for all your peripherals and devices.
GIGABYTE’s Smart Fan 6 technology ensures optimal cooling by allowing precise fan control, keeping your system cool even under heavy workloads. Built with Ultra Durable components, this motherboard offers long-lasting reliability and protection for your system.
Q1: Does this motherboard support Intel 14th Gen processors?
Yes, it supports Intel 12th, 13th, and 14th Gen processors with the LGA 1700 socket.
Q2: Does it have built-in WiFi?
Yes, it comes with integrated WiFi 6 for fast wireless connectivity.
Q3: What type of RAM does it support?
It supports DDR5 RAM for higher speed and efficiency.
Q4: How many M.2 slots are available?
It includes dual M.2 slots for high-speed NVMe SSD storage.
Q5: Is this motherboard good for gaming?
Yes, it is an excellent choice for gaming with PCIe 4.0 support, DDR5 memory, and stable performance.
Get specific details about this product from customers who own it.
