Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳18,200
| Basic Information | ||
| Supported CPU | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
|
| Chipset | AMD B650 | |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | 1 x M.2 connector | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128 GB (64 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard |
|
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | 1 x D-Sub | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 Years Warranty | |

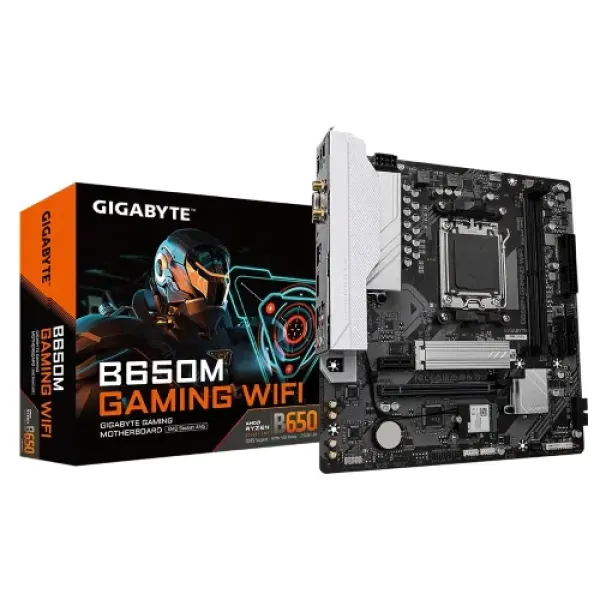

The GIGABYTE B650M GAMING WIFI AM5 Micro-ATX Motherboard offers the ideal foundation for high-performance PC builds. Supporting AMD Ryzen 9000, 8000, and 7000 Series processors, this motherboard provides exceptional power delivery and reliability for gaming and multitasking applications.
With 2x DDR5 RAM slots, the motherboard supports up to 128GB of high-speed DDR5 memory (6400(OC)), allowing for smooth gameplay, quick load times, and enhanced performance for modern workloads.
The motherboard offers multiple graphics options including 1x HDMI and 1x D-Sub ports for versatile display configurations. Whether you are building a gaming PC, professional workstation, or multimedia system, these outputs ensure flexibility in connecting monitors.
For networking, the Realtek 2.5GbE LAN provides high-speed wired connections, while the Realtek RTL8821CE Wi-Fi ensures seamless wireless connectivity, perfect for gaming, streaming, or remote work without interruptions.
The GIGABYTE B650M GAMING WIFI is an excellent choice for builders who want stability, performance, and enhanced connectivity in a compact and feature-packed motherboard.
Get specific details about this product from customers who own it.
