Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳18,150
| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzenâ„¢ 5000 G-Series Processors/ AMD Ryzenâ„¢ 5000 Series Processors/ AMD Ryzenâ„¢ 4000 G-Series Processors/ AMD Ryzenâ„¢ 3000 G-Series Processors/ AMD Ryzenâ„¢ 3000 Series Processors |
|
| Chipset | AMD B550 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzenâ„¢ 5000/3000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzenâ„¢ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzenâ„¢ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzenâ„¢ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| USB (s) | CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzenâ„¢ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzenâ„¢ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
|
| Others | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Others | ||
| Special Features | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 03 Years | |
Reliable AM4 Micro ATX motherboard with DDR4 support, PCIe 4.0, and built-in Wi-Fi 6 for smooth gaming performance

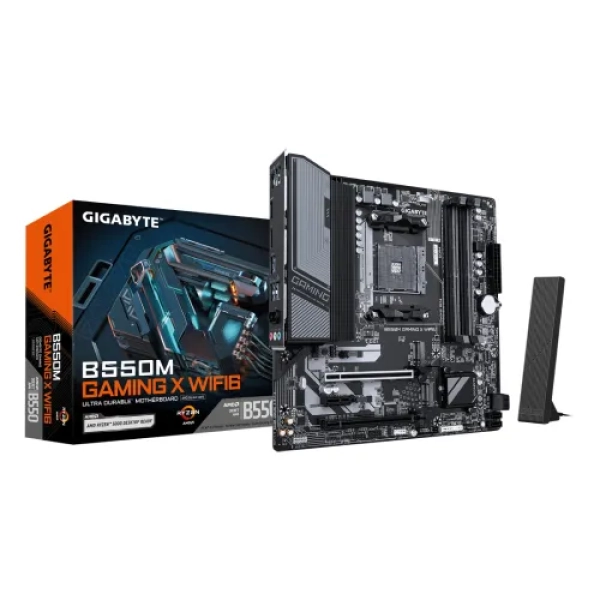

The GIGABYTE B550M GAMING X WIFI6 is a solid Micro ATX motherboard built for users who want reliable performance on the AMD AM4 platform. Designed with the B550 chipset, it supports AMD Ryzen 3000, 4000, and 5000 series processors, making it a great option for budget to mid-range gaming builds.
It features 4 DDR4 DIMM slots with support up to 4733MHz (OC), allowing smooth multitasking and gaming performance. The board also includes a PCIe 4.0 x16 slot for modern graphics cards and dual M.2 slots (PCIe 4.0 + PCIe 3.0), ensuring fast storage and system responsiveness.
With a 5+3 phase digital VRM design, the motherboard provides stable power delivery for Ryzen CPUs. It also comes with VRM Thermal Armor and Smart Fan 6, helping maintain efficient cooling during long gaming sessions.
One of the key highlights is built-in Wi-Fi 6 and Gigabit LAN, delivering fast and stable internet connectivity for online gaming and streaming. Additional connectivity includes HDMI, DisplayPort, USB 3.2 ports, and high-quality audio support.
Overall, this motherboard is an excellent choice for users who want a balanced AM4 gaming build with wireless connectivity and strong performance at an affordable price.
This motherboard is ideal for users who want a cost-effective AM4 solution with Wi-Fi support. It offers strong performance, modern connectivity, and PCIe 4.0 features—perfect for gaming, streaming, and everyday computing.
Q1: Which processors are supported?
A: It supports AMD Ryzen 3000, 4000, and 5000 series processors.
Q2: Does it support DDR5 RAM?
A: No, it supports DDR4 RAM only.
Q3: Does it have built-in Wi-Fi?
A: Yes, it comes with Wi-Fi 6 and Gigabit LAN support.
Get specific details about this product from customers who own it.
