| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B550 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset: Supporting PCIe 3.0 x4 mode 1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset: Supporting PCIe 3.0 x1 mode |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 4 x DIMM |
|
| Supported Memory | 3rd Gen AMD Ryzen Processors: Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Warranty Details | ||
| Warranty Details | 03 years | |

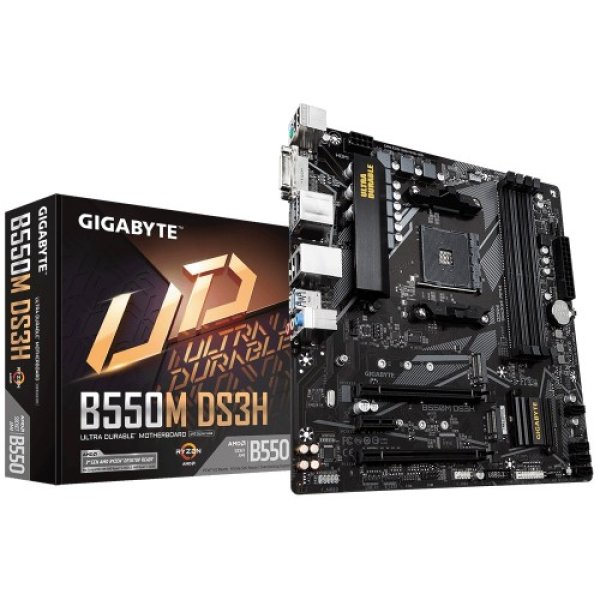

The GIGABYTE B550M DS3H AC is a feature-packed Micro-ATX motherboard designed for AMD Ryzen processors. Built on the AMD B550 chipset, it supports Ryzen 3000, 4000 G-Series, and 5000 Series processors, making it an excellent choice for both gaming setups and professional productivity systems.
With integrated WiFi, PCIe 4.0 support, and high-speed M.2 storage compatibility, this motherboard delivers stable performance at an affordable price point.
Powered by the AMD B550 chipset, this motherboard supports advanced Ryzen processors with improved bandwidth and system efficiency. It offers PCIe 4.0 support for compatible CPUs, ensuring faster GPU and NVMe SSD performance.
The digital VRM design provides stable power delivery, allowing smooth multitasking, gaming, and content creation.
The “AC” version includes integrated WiFi, eliminating the need for additional adapters. It also features:
Gigabit LAN for stable wired networking
Multiple USB ports for peripherals
HDMI and DVI display outputs (for compatible CPUs with integrated graphics)
This makes it suitable for both home users and office environments.
The motherboard supports:
DDR4 memory modules for smooth system performance
M.2 NVMe SSD for faster boot times and data transfer
SATA ports for additional HDD or SSD storage
With PCIe 4.0 support (on compatible CPUs), users can achieve next-level storage and graphics speeds.
The Micro-ATX form factor allows installation in compact and mid-sized cases while still offering expansion flexibility. It includes PCIe slots for dedicated graphics cards, making it ideal for budget gaming builds or workstation setups.
GIGABYTE integrates high-quality components, optimized PCB layout, and smart fan control features to maintain system stability under load. The board is designed for long-term durability and consistent performance.
Whether you are building a gaming PC, upgrading your current system, or assembling an office workstation, this motherboard offers excellent value and reliable performance.
Supports AMD Ryzen 3000 / 4000 G / 5000 Series
AMD B550 chipset
Built-in WiFi (AC version)
PCIe 4.0 support (with compatible CPU)
M.2 NVMe SSD support
Micro-ATX compact form factor
Stable digital power delivery
1. Which processors are supported?
It supports AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors (AM4 socket).
2. Does this motherboard have built-in WiFi?
Yes, the AC version includes integrated WiFi.
3. Does it support PCIe 4.0?
Yes, PCIe 4.0 is supported with compatible Ryzen processors.
4. Is it suitable for gaming?
Yes, with PCIe 4.0 GPU support and high-speed NVMe compatibility, it is ideal for gaming builds.
5. What RAM type is supported?
It supports DDR4 memory modules.
Get specific details about this product from customers who own it.
