| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors | |
| Chipset | AMD B550 | |
| Form Factor | ATX Form Factor: 30.5cm x 24.4cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | x PCI Express x16 slot (PCIEX16), integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode PCI Express x16 slot (PCIEX2), integrated in the Chipset: Supporting PCIe 3.0 x2 mode 2 x PCI Express x1 slots |
|
| M.2 Socket | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: support PCIe 3.0 x4/x2 SSDs |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM Slots | |
| Supported Memory | AMD Ryzen 5000 series Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 128 GB (32 GB single DIMM capacity) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|

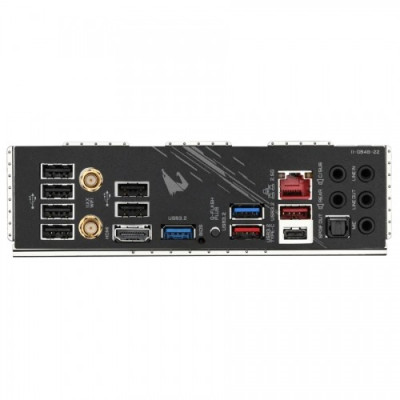

| USB (s) | CPU: 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
|
| Wireless Communication module | Intel Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 5 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SSDs: support PCIe 3.0 x4/x2 SSDs 6 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
|
| RAID | ||
| Audio | Realtek ALC1220-VB codec High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x temperature sensor headers 1 x Thunderbolt add-in card connector 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Years |
|
| others | ||

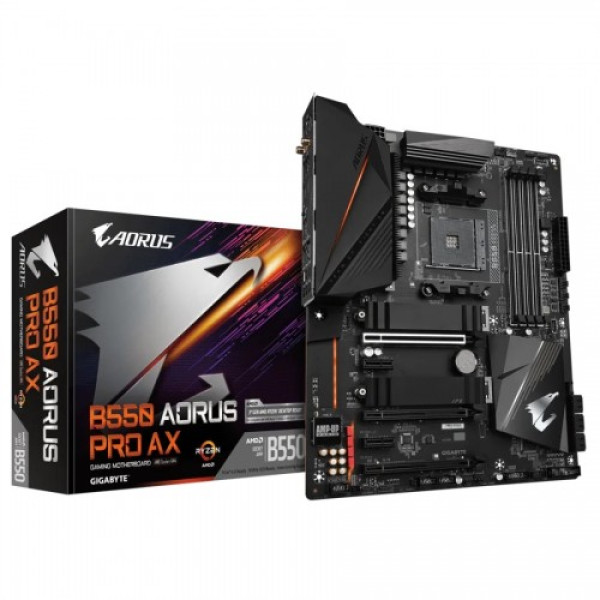

The GIGABYTE B550 AORUS PRO AX AM4 Motherboard is designed to deliver powerful performance, exceptional durability, and advanced connectivity options, making it a perfect choice for gamers, enthusiasts, and content creators. Supporting AMD Ryzen 5000 Series, 3rd Gen Ryzen, and 3rd Gen Ryzen with Radeon Graphics processors, this motherboard ensures seamless multitasking and high-speed computing while maintaining system stability under heavy workloads.
One of the standout features of this motherboard is its 12+2 phases digital twin power design, which guarantees efficient power delivery to the CPU for optimal performance and overclocking potential. This power architecture ensures stability, reduces heat generation, and increases overall system efficiency, making it perfect for high-performance gaming and professional workloads.
For storage, the Dual PCIe 4.0/3.0 M.2 slots with Thermal Guard provide ultra-fast NVMe SSD support while preventing overheating, ensuring uninterrupted performance during intensive applications such as video editing, 3D rendering, and gaming. The Ultra Durable PCIe 4.0 Ready x16 slot enhances GPU performance and longevity, making it ideal for high-end gaming and workstation builds.
Additionally, this motherboard features next-generation connectivity, including ultra-fast Wi-Fi for wireless networking, advanced cooling solutions, and GIGABYTE’s renowned Ultra Durable components for long-lasting reliability. Whether you’re a gamer, professional, or PC enthusiast, the GIGABYTE B550 AORUS PRO AX AM4 ATX Motherboard provides everything you need to build a cutting-edge and future-proof system.
