Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳8,690
| Audio and Video | ||
| IP Camera Input | Port HDD : 1 front USB 2.0 port, 1 rear USB 2.0 port USB : 1 HDMI : 1 VGA : 1 RCA Input : 1 RCA Output : 1 Alarm : None Network : 1 RJ–45 port (10/100 Mbps), 4 RJ–45 ports with PoE power supply (10/100 Mbps) |
|
| Two-Way Talk | ||
| Display | ||
| Interface | 1x HDMI, 1x VGA, 1x RJ-45 port (10/100/1000Mbps) Type PoE NVR Switch |
|
| Resolution | ||
| Decoding Capacity | Access Method Access Channel : 4 channels Network Bandwidth : 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. Resolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF Decoding Capability : 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS) Video Output : 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P Multi-screen Display : 1/4 Third Party Camera Access : Onvif, RTSP Advanced Functions Multi-channel Playback : Up to 4 channels playback Record Mode : Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording Storage : Local HDD and network Backup : USB device Playback Function : 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off General Alarm : Motion detection, privacy masking, video loss, PIR alarm, IPC alarm Anomaly Alarm : Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly Alarm Linkage : Video recording, snapshot, log, preset, tour Compression Video : Smart H.265+/H.265/Smart H.264+/H.264 Audio : PCM/G711A/G711U/G726/AAC System Main Processor : Industrial-grade embedded processor Operating System : Embedded Linux Operation Interface : Web/operating in local GUI USB: 2 ports (1 Rear USB2.0, 1 Front USB2.0) Internal HDD: 1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature Interoperability: ONVIF 2.4, SDK, CGI Compression: Smart H.265+/H.265/Smart H.264+/H.264 Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc. Record Rate: 80Mbps Bit Rate: 16Kbps ~ 20Mbps Per Channel MAC Address Table: 2K Environment: Operating Conditions: -10°C to +55°C (+14°F to +131°F), 86–106kpa Storage Conditions: 0°C to +40°C (+32°F to +104°F), 30–85% RH |
|
| Recording | ||
| Record Mode | ||
| Video Detection And Alarm | ||
| Video Detection | ||
| Playback And Backup | ||
| Search Mode | ||
| Playback Function | ||
| Backup Mode | ||
| Storage | ||
| Internal HDD | ||
| eSATA | ||
| Third Party Support | ||
| Third Party Support | ||
| Network | ||
| Ethernet Port | ||
| Network Function | Network Protocol : HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P Mobile Phone Access : iDMSS(iOS), gDMSS(Android) Access Standard : ONVIF(profile T/profile S/profile G),CGI,SDK Browser : Chrome, IE9 or above, Firefox |
|
| Smart Phone | ||
| Auxiliary Interface | ||
| USB | ||
| Power | ||
| Power Supply | Single, DC48V/2A Power Consumption: NVR: <5.8W (without HDD) PoE: Max 25.5w for single port, 80w in total |
|
| Power Consumption | ||
| Construction | ||
| Dimensions | Compact 1U, 260 mm × 224.9 mm × 47.6 mm (10.2″ × 8.9″ × 1.9″) |
|
| Net Weight | 0.8 kg (1.76 lb) (without HDD) | |
| Gross Weight | 1.6 kg (3.53 lb) (without HDD) | |
| Warranty Information | ||
| Warranty | 1 Year |
|

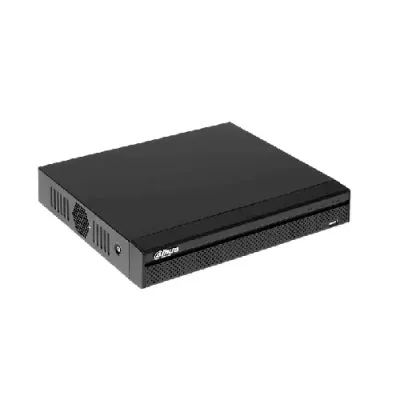

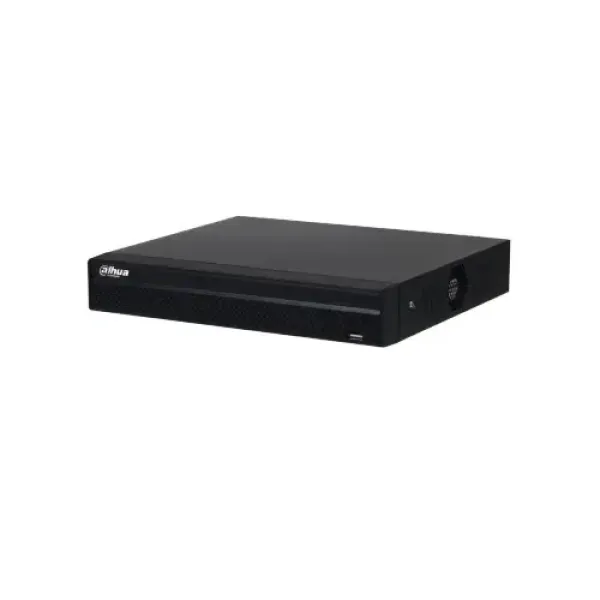

The Dahua DHI-NVR1104HS-P-S3/H is a compact and powerful 4-channel Network Video Recorder (NVR) with built-in Power over Ethernet (PoE) support. Designed for homes, offices, and small businesses, this NVR offers easy plug-and-play installation, smart motion detection, and remote access capabilities for seamless 24/7 surveillance.
✅ 4-Channel IP Camera Support – Connect up to 4 security cameras with PoE.
✅ Built-in PoE Ports – Directly power cameras without extra adapters.
✅ H.265+ Compression – Saves up to 50% storage space while maintaining high video quality.
✅ 4K Ultra HD Output – Crystal-clear footage for detailed monitoring.
✅ Smart AI Motion Detection – Detects humans and vehicles for accurate alerts.
✅ Remote Access & Playback – Monitor via the Dahua mobile app anytime, anywhere.
✅ Compact & Energy-Efficient – Ideal for home security and small-scale business setups.
✅ Homeowners & Small Offices – Perfect for monitoring homes, apartments, and offices.
✅ Retail Shops & Cafés – Ideal for keeping an eye on store security.
✅ Small Warehouses & Storage Facilities – Secure inventory with high-definition surveillance.
❌ Large Enterprises & Industrial Sites – A higher-channel NVR like Dahua NVR5232-EI is recommended.
❌ Wireless Camera Users – This NVR only supports wired IP cameras via PoE.
The Dahua DHI-NVR1104HS-P-S3/H stands out with its PoE functionality, smart AI detection, and 4K UHD support, making it an efficient and cost-effective choice for those looking for a compact yet powerful surveillance solution.
Get specific details about this product from customers who own it.
