EMI available for 12 months on regular price: ৳41,000
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | Total supports 3 x M.2 slots Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | 8000+ OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module OptiMem II |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5 pin Front Panel System header 1 x Thunderbolt (USB4) Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation ASUS DriverHub AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

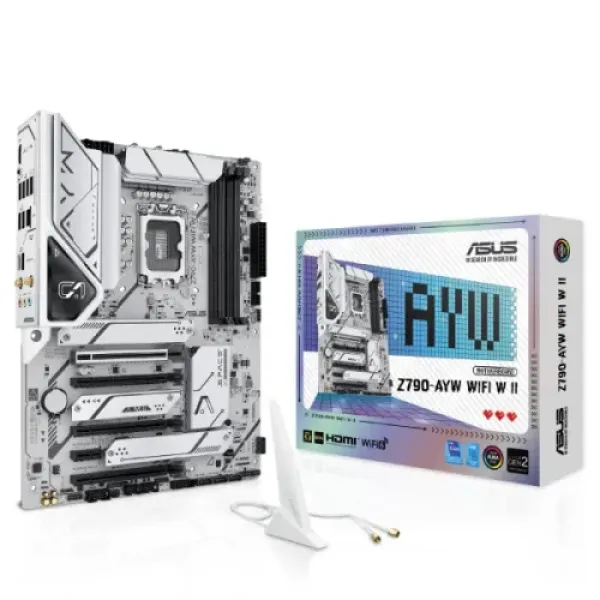

The ASUS Z790-AYW WIFI W II ATX Motherboard is built on the powerful Intel Z790 chipset and supports 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron CPUs. Equipped with Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 technologies, it ensures maximum CPU efficiency and clock speed optimization for gaming, creative workloads, and productivity. With its ATX form factor (30.5 cm x 24.4 cm), it offers a versatile balance of power, expandability, and cooling efficiency.
Designed for enthusiasts and professionals, the Z790-AYW supports the latest DDR5 memory technology, with 4 DIMM slots accommodating up to a massive 192GB capacity. It enables blazing-fast memory speeds up to 8000+ MHz (OC), ensuring ultra-low latency and stability. With dual-channel architecture, Intel XMP support, and ASUS OptiMem II technology, memory overclocking becomes seamless, stable, and fine-tuned for every high-performance task — whether you’re gaming at ultra settings or running heavy 3D rendering workloads.
The motherboard is future-ready for next-gen GPUs, featuring 1x PCIe 5.0 x16 slot for the latest graphics cards, ensuring maximum bandwidth for 4K and even 8K gaming. Additional 3x PCIe 4.0 x16 slots (x4 mode) and 1x PCIe 3.0 x1 slot allow for expansion cards such as capture cards, NVMe storage adapters, or additional controllers. The SafeSlot reinforcement design protects your GPU from sagging and ensures durability during extended gaming or rendering sessions.
With 3x M.2 slots and 4x SATA 6Gb/s ports, the ASUS Z790-AYW is engineered for flexible and fast storage. The M.2 slots support both PCIe 4.0 x4 and SATA modes, accommodating a wide range of NVMe SSDs for lightning-fast boot times and transfer speeds. ASUS also includes support for Intel Rapid Storage Technology, enabling RAID 0/1/5/10 setups for improved performance, redundancy, or a balance of both — ideal for power users and professionals handling large files.
Connectivity is comprehensive, featuring 8 rear USB ports, including USB 10Gbps Type-A and Type-C, plus USB 5Gbps and USB 2.0 options for peripherals. The front panel expands with 9 additional USB connections, including USB Type-C support. Networking is fast and reliable with Realtek 2.5Gb Ethernet with ASUS LANGuard protection and built-in Wi-Fi 6 (802.11ax). Paired with Bluetooth 5.3, the motherboard delivers smooth online gaming, wireless streaming, and lag-free device pairing.
