Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳37,600
Basic Information | ||
Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
Chipset | INTEL B860 | |
Form Factor | mATX Form Factor 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
|
BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
|
Expansion Slots | ||
PCI | Intel® CoreTM Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x4 slot |
|
M.2 Socket | 3x M.2 | |
Memory | ||
Type | DDR5 | |
Slots | 4 | |
Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual Channel Memory Architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
Maximum Memory | Maximum Memory Capacity 256GB | |
Graphics | ||
Graphics | 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
|
Connector & Ports | ||
HDMI | 1x HDMI 2.1 | |
USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
|
LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
|
Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors(Series 2)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
RAID | SATA RAID 0/1/5/10 | |
Audio | 5 x Audio jacks | |
Internal I/O Ports | I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|
Others | ||
Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Addressable Gen 2 headers |
|
Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost |
|
Warranty Details | ||
Warranty Details | 3 Year warranty |

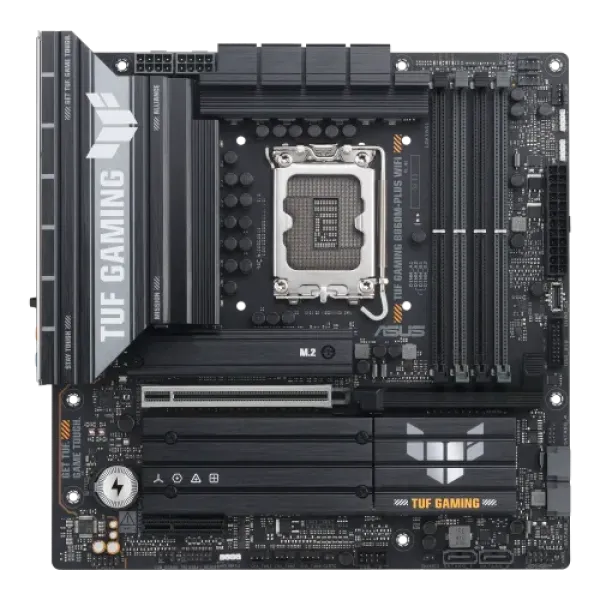

The Asus TUF GAMING B860M-PLUS WIFI is designed for gamers and performance-focused users who want durability and efficiency in a compact Micro-ATX form factor. Built on the Intel B860 chipset, this board supports the latest Intel Core Ultra (Series 2) processors on the LGA1851 socket. Its dual 128Mb UEFI AMI BIOS ensures reliable updates, secure system management, and a smooth computing experience for gaming, streaming, or creative workloads.
With support for 4 DIMM slots and up to 256GB DDR5 memory, this board unlocks blazing speeds of 8800+ MT/s (OC). The dual-channel memory architecture, Intel XMP, and ASUS Enhanced Memory Profile III (AEMP III) guarantee high stability and maximum overclocking flexibility. For expansion, it provides a PCIe 5.0 x16 slot for GPUs and a PCIe 4.0 x4 slot, ensuring gamers and creators have the bandwidth for modern graphics cards and expansion hardware.
The TUF B860M-PLUS makes high-resolution gaming and productivity seamless with 1x HDMI 2.1 port, 1x DisplayPort 1.4a, and USB Type-C with DisplayPort output. Supporting up to 4K@60Hz visuals, this board delivers smooth refresh rates, vibrant colors, and crystal-clear video output for modern gaming monitors and 4K displays.
Connectivity is future-proof with 8 rear USB ports and 5 front USB connections, including USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0. For networking, the board offers Realtek 2.5Gb Ethernet with TUF LANGuard for rock-solid wired connections and Wi-Fi 7 (802.11be) for lightning-fast wireless speeds of up to 2.9Gbps. Paired with Bluetooth 5.4, it ensures low-latency gaming, seamless streaming, and effortless multi-device pairing.
Storage flexibility is a standout feature here. The motherboard comes with 3 x M.2 slots (including PCIe 5.0 x4 for the fastest NVMe SSDs) and 4 x SATA 6Gb/s ports for traditional drives. With support for Intel Rapid Storage Technology and RAID 0/1/5/10, users can configure high-speed boot drives, gaming libraries, and secure backup setups without compromise.
For gamers and streamers, audio is just as important as performance. This board is powered by the Realtek 7.1 Surround Sound High Definition Audio CODEC with 24-bit/192kHz playback support. Coupled with DTS Audio Processing, it provides enhanced clarity, immersive surround sound, and deep bass response—ideal for competitive gaming, music production, or high-definition movie playback.
The Asus TUF GAMING B860M-PLUS WIFI Micro-ATX Motherboard delivers a compact yet powerful platform for gamers and creators. It supports Intel Core Ultra processors, DDR5 RAM up to 8800+ MT/s, and PCIe 5.0 graphics. With 3 M.2 slots, Wi-Fi 7, 2.5Gb LAN, and DTS audio, it balances speed, durability, and immersive entertainment. Military-grade protection, thermal stability, and ASUS EZ DIY features make it both reliable and user-friendly. Perfect for those who want a smaller form factor without compromising on performance or future-readiness.
