| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | INTEL B860 | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 2 x 128 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode. |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|
| RAID | SATA RAID 0/1/5/10 | |
| Audio | 5 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x USB Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x USB Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button |
|
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving ASUS DriverHub ASUS GlideX TUF GAMING CPU-Z Adobe Creative Cloud (Free Trial) DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Details | ||
| Warranty Details | 3 Year warranty | |

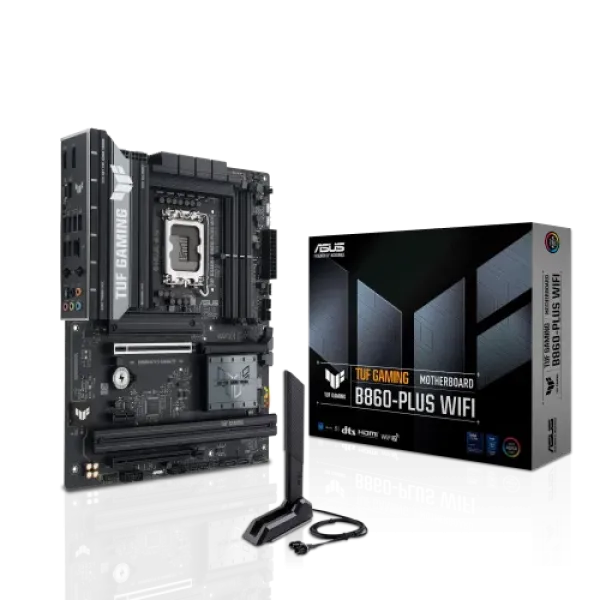

The Asus TUF GAMING B860-PLUS WIFI is engineered for gamers and PC enthusiasts who demand stability, durability, and high performance. Built with the Intel B860 chipset, it supports the latest Intel Core Ultra Series 2 processors on the LGA1851 socket. With dual 128Mb Flash ROM UEFI BIOS, you can expect reliable updates, enhanced system stability, and smoother performance even during demanding multitasking sessions.
This motherboard features 4 DDR5 DIMM slots with support for up to 256GB of DDR5 RAM and speeds reaching 8666+ MT/s (OC). Dual-channel architecture ensures faster performance, while Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III) optimize memory overclocking and stability. For expansion, it provides PCIe 5.0 x16 for next-gen GPUs, PCIe 4.0 x16 (x4 mode), and PCIe 4.0 x1, offering flexibility for graphics, storage, and other add-ons.
Enjoy sharp, high-resolution visuals with multiple display options. The TUF GAMING B860-PLUS offers 1 x HDMI 2.1 port, 1 x DisplayPort 1.4a, and a USB Type-C with DP Alt Mode. It supports 4K@60Hz resolution, delivering smooth gameplay, vibrant visuals, and crystal-clear streaming quality. Whether gaming or editing, this motherboard ensures excellent video output.
Connectivity is a major strength of the B860-PLUS. With 8 rear USB ports and 5 front USB connections, including USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and USB 2.0, you get all the modern options for peripherals and fast transfers. Networking is future-ready with Realtek 2.5Gb Ethernet (with TUF LANGuard protection) and Wi-Fi 7 (802.11be), ensuring ultra-fast, stable, and low-latency internet connections. It also includes Bluetooth 5.4 for seamless wireless device connectivity.
For storage enthusiasts, the motherboard supports 3 x M.2 slots (including PCIe 5.0 x4 and PCIe 4.0 x4 modes) and 4 x SATA 6Gb/s ports. These provide a flexible mix of NVMe SSDs and HDDs. With Intel Rapid Storage Technology and support for RAID 0/1/5/10, you get data redundancy, faster load times, and top-tier storage flexibility for gaming and content creation.
The Realtek 7.1 Surround Sound High Definition Audio CODEC ensures immersive audio quality, supporting 24-bit/192 kHz playback. Features like jack-detection, front panel jack-retasking, and multi-streaming make it ideal for gamers and creators alike. Additionally, DTS Audio Processing enhances sound clarity and bass response, creating a more dynamic listening experience whether you’re gaming, watching movies, or streaming.
The Asus TUF GAMING B860-PLUS WIFI LGA1851 Motherboard is built for gamers who want both durability and performance. It supports the latest Intel Core Ultra processors, offers PCIe 5.0, DDR5 memory, and provides robust storage with 3 M.2 slots & 4 SATA ports. With Wi-Fi 7, Realtek 2.5Gb Ethernet, and DTS audio, it delivers powerful connectivity and immersive sound. Military-grade TUF components ensure long-lasting reliability, while Aura Sync RGB and ASUS EZ DIY features make building and customization effortless. This is the perfect foundation for gamers seeking a future-proof, durable, and performance-driven motherboard.
