| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | B550 | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| USB (s) | Rear USB:Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | TUF LANGuard | |
| Wireless Communication module | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 | |
| Supported Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 header |
|
| Bundled Software | ASUS Exclusive Software Armory Crate - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

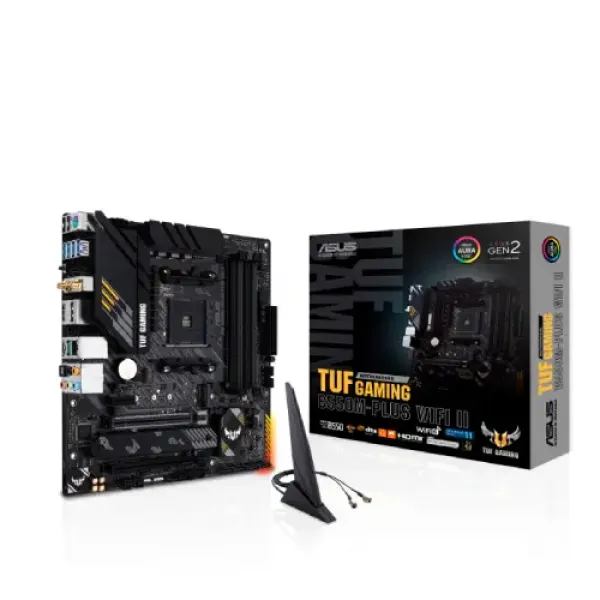

ASUS always nails it when it comes to gaming motherboards, and the TUF GAMING B550M Plus WIFI II is a perfect example. Despite its compact micro-ATX form factor, this board comes packed with premium features that rival even larger ATX models. With support for Ryzen 5000, 4000, and 3000 series processors, PCIe 4.0 graphics capability, Wi-Fi 6 connectivity, AI-powered noise cancelation, and durability-focused engineering, this motherboard is designed to be a reliable gaming powerhouse that can take on anything you throw at it.
At the heart of this motherboard lies the AMD B550 chipset, unlocking full compatibility with Ryzen 5000 series CPUs for smooth and efficient performance. Gamers will love the inclusion of a PCIe 4.0 x16 slot, which ensures next-gen graphics cards can run at their best without bottlenecks. For storage, the TUF GAMING B550M Plus WIFI II offers dual M.2 slots along with RAID support, giving you lightning-fast boot times, shorter load screens, and high-speed multitasking with ease.
This motherboard is ready to handle heavy multitasking thanks to its four DIMM slots that support up to 128GB of DDR4 RAM. With overclocking enabled, the memory speeds can reach up to 4866 MHz, making it ideal for gamers, creators, and power users who demand blazing fast responsiveness. Whether you are running multiple programs, gaming at high refresh rates, or editing large video projects, the B550M Plus WIFI II ensures that memory performance is never a bottleneck.
One of the strongest highlights of this board is its connectivity. Built-in Wi-Fi 6 combined with Bluetooth 5.2 ensures that you can enjoy wireless gaming and streaming with lower latency and stronger signals. The rear panel is loaded with USB options, including USB 3.2 Gen 2 Type-C and Type-A ports for ultra-fast transfers, along with additional USB 3.2 Gen 1 and USB 2.0 ports for peripherals. The video output is equally impressive with HDMI 2.1 and DisplayPort 1.2, making it easy to set up multi-monitor gaming or productivity stations.
The ASUS TUF GAMING B550M Plus WIFI II is engineered with gamers in mind, which means effective cooling and durability are a top priority. It comes with VRM heatsinks and dedicated M.2 heatsinks that keep your system stable even during extended gaming or rendering sessions. ASUS TUF Protection adds an extra layer of safety with features like overvoltage defense, ESD guards, reinforced SafeSlot PCIe slots, stainless-steel back I/O, and DIGI+ VRM power design. This ensures your system not only runs stable but also lasts for years of intense usage.
No modern gaming rig feels complete without RGB lighting, and this motherboard delivers with AURA Sync support. It features customizable lighting and Addressable Gen 2 headers, giving you the freedom to design your setup exactly the way you want. Whether you want a minimal aesthetic glow or a full-on rainbow gaming vibe, this motherboard makes it possible to sync your lighting across all compatible components.
To enhance your overall experience, ASUS bundles the TUF GAMING B550M Plus WIFI II with a powerful suite of software. Armory Crate and Aura Creator give you complete control over system monitoring and RGB customization, while AI Suite 3, TurboV EVO, and Fan Xpert 2+ let you fine-tune system performance and cooling exactly to your needs. Two-Way AI Noise Cancelation ensures crystal-clear voice communication during games or meetings, while DTS Custom audio brings immersive sound quality to your gaming headset. ASUS also includes extras like a free Norton Antivirus trial, WinRAR, and various system utilities to make the setup even more complete.
This motherboard is an excellent choice for gamers who want to build a Ryzen-based system that balances performance with compact form factor convenience. It is ideal for users who want the feature set of a full-size ATX board but in a smaller micro-ATX size. Streamers, creators, and competitive gamers will appreciate its Wi-Fi 6 connectivity, fast storage support, and future-proof graphics compatibility. It is also a great pick for anyone who values stability, durability, and customizable RGB aesthetics in their build.
