| Basic Information | ||
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | AMD B550 | |
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD Ryzen 4000 G-Series Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
|
| M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support |
|
| Others | ||
| Memory | ||
| Type | DDR4 |
|
| Slots | 4 x DIMM | |
| Supported Memory | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4600(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory AMD Ryzen 4000 G-Series Processors 5100(O.C)/ 4866(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) |
|
| USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) Front USB Port ( Total 7 ) 3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) 4 x USB 2.0 port(s)(4 x Type-A) |
|
| LAN Port (s) | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | ||
| Supported Storage | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD Ryzen 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| RAID | ||
| Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1 front panel TypeC™ connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header |
|
| Others | 1 x DisplayPort 1.2 |
|
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years |
|
| others | ||

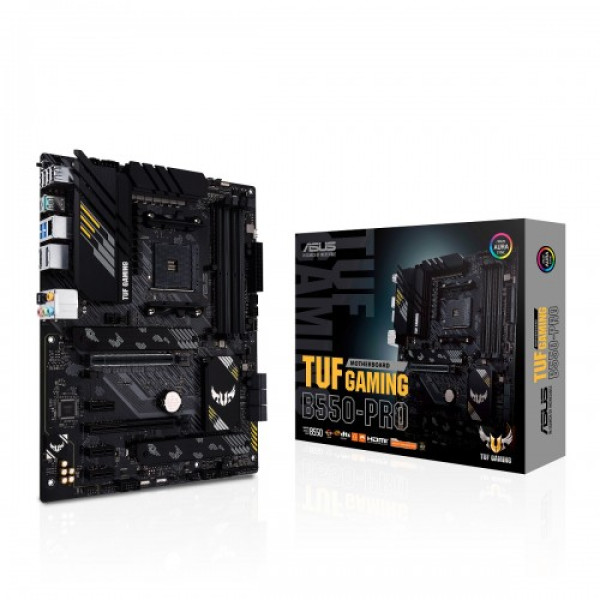

The Asus TUF Gaming B550 Pro ATX AM4 Motherboard is a feature-packed motherboard designed for gamers and PC enthusiasts who demand performance, stability, and reliability. Built for AMD Ryzen 5000, 4000 G, and 3000 Series desktop processors, it maximizes system performance with enhanced connectivity, cooling, and durability.
With PCIe 4.0 support, this motherboard enables faster data transfer speeds, making it ideal for high-performance gaming, video editing, and content creation. Realtek S1200A audio technology, enhanced by DTS Custom sound profiles, provides immersive gaming audio with rich soundscapes and crisp details.
One of its standout features is Two-Way AI Noise Cancelation, which utilizes AI algorithms to filter background noise from both your microphone and incoming audio, ensuring crystal-clear communication during gaming sessions, live streaming, and online meetings.
To maintain optimal performance, the Asus TUF Gaming B550 Pro features comprehensive cooling solutions, including VRM heatsinks, hybrid fan headers, and Fan Xpert 4 support. This ensures that your system remains cool and stable even during extended gaming sessions.
Military-grade TUF components, including TUF capacitors, MOSFETs, and chokes, enhance durability and longevity, making this motherboard an excellent choice for long-term gaming builds. The reinforced PCIe slots and ESD protection further improve its resilience against physical and electrical damage.
For connectivity, the B550 Pro offers ultrafast networking with 2.5Gb Ethernet, ensuring low-latency online gaming and seamless file transfers. Multiple USB 3.2 Gen 2 ports provide high-speed connectivity for external devices.
ASUS AI-enhanced BIOS and software tools allow users to fine-tune system performance, overclocking, and cooling settings effortlessly. Whether you’re a competitive gamer, content creator, or PC enthusiast, the Asus TUF Gaming B550 Pro delivers the perfect balance of power, durability, and advanced features for your next AM4 gaming build.
