| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | A520 | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

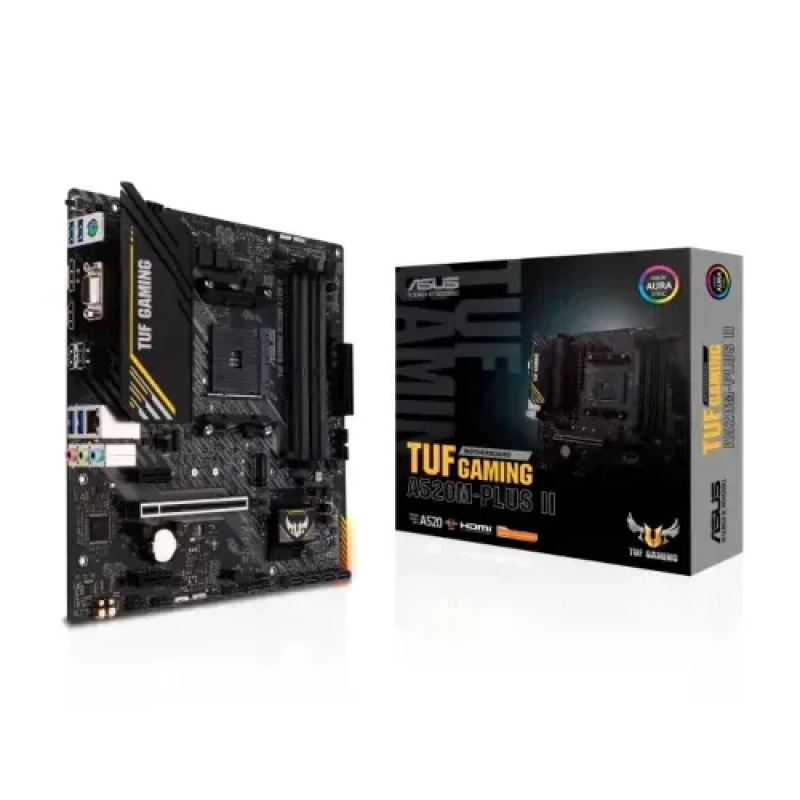

The ASUS TUF GAMING A520M-PLUS II is a durable and high-performance microATX motherboard designed for AMD Ryzen processors. Built on the reliable A520 chipset, it supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors. This motherboard delivers excellent performance for gaming and productivity, making it a solid foundation for any PC build. Its compact microATX form factor ensures compatibility with a wide range of PC cases, offering flexibility for custom builds.
Equipped with 4 DIMM slots, the motherboard supports DDR4 memory speeds up to 4866 MHz (OC) with a maximum capacity of 128GB, ensuring smooth multitasking and responsiveness. It includes 1 M.2 slot (Key M) for ultra-fast NVMe SSDs and 4 SATA 6Gb/s ports with support for RAID 0, 1, and 10, delivering versatile storage options.
For expandability, the board features 1 PCIe 3.0 x16 slot for dedicated graphics cards and 2 PCIe 3.0 x1 slots for additional peripherals. Its display connectivity includes 1 HDMI 2.1 port (4K@60Hz), 1 DisplayPort 1.2, and 1 D-Sub port, supporting both modern and legacy monitors. The networking capabilities are powered by a Realtek 1Gb Ethernet port, enhanced with TUF LANGuard for stable and secure connections.
The ASUS TUF GAMING A520M-PLUS II is built with TUF-grade durability, featuring DIGI+ VRM, ESD Guards, Overvoltage Protection, and SafeSlot Core+, ensuring it withstands the demands of intensive workloads and heavy gaming sessions. The VRM heatsink design enhances cooling, maintaining consistent performance even under heavy loads.
The board also supports AURA Sync RGB lighting with 2 AURA RGB headers and 2 Addressable Gen 2 headers, enabling personalized and synchronized lighting effects for a visually stunning build. Audio is powered by the Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, offering immersive sound quality enhanced with Audio Shielding, Premium Japanese Capacitors, and Dedicated Audio PCB Layers.
This motherboard is designed with ease of use in mind. DIY enthusiasts will benefit from features like the BIOS FlashBack Button and ASUS EZ DIY tools, simplifying system updates and maintenance. It also comes with bundled software such as Armoury Crate for RGB customization, AI Suite 3 for performance tuning, and TUF GAMING CPU-Z for hardware monitoring. Additionally, it includes a Norton Anti-virus (free trial) and WinRAR for added utility.
The ASUS TUF GAMING A520M-PLUS II stands out for its robust performance, exceptional durability, and a host of customer-friendly features. Whether you're a gamer or a PC enthusiast, this motherboard provides a reliable and efficient platform for building your ideal system.
Get specific details about this product from customers who own it.
