Basic Information | ||
Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
Chipset | Intel Z890 Chipset | |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
Expansion Slots | ||
PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel Z890 Chipset 2 x PCIe 4.0 x16 slots (supports x4 mode) |
|
M.2 Socket | 4 x M.2 slots and 4 x SATA 6Gb/s ports | |
Memory | ||
Type | DDR5 | |
Slots | 4x DIMM slots | |
Supported Memory | Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
|
Maximum Memory | 256GB | |
Graphics | ||
Graphics | 1 x DisplayPort 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. |
|
Connector & Ports | ||
HDMI | 1 x HDMI 2.1 | |
USB (s) | Rear USB (Total 10 ports) 2 x USB 20Gbps ports (1 x USB Type-C* + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps (1 x USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
|
LAN Port (s) | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
Supported Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. |
|
RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. | |
Audio | 2 x Gold-plated audio jacks | |
Internal I/O Ports | Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header support 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
|
Others | ||
Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Rear USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A - Compatible with PD3.0 |
|
Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - ASUS AI Advisor - ASUS Driver Hub - ASUS GlideX - USB Wattage Watcher - TurboV Core - Adobe Creative Cloud (Free Trial) - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey |
|
Warranty Details | ||
Warranty Details | 3 Years |

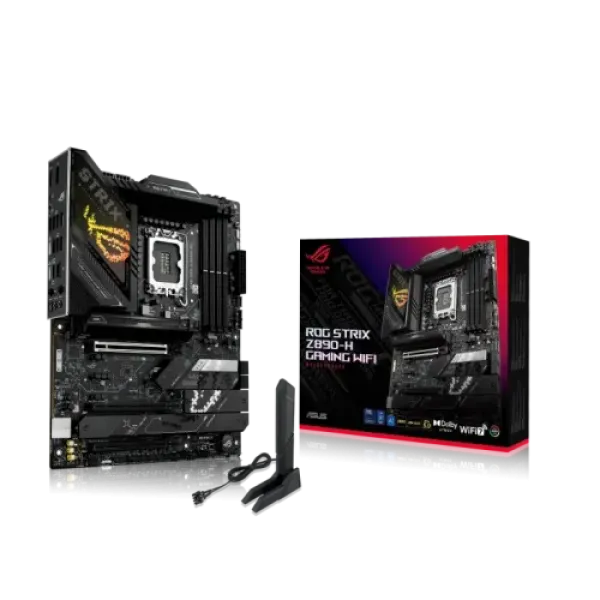

The ASUS ROG STRIX Z890-H GAMING WIFI Motherboard is designed for gamers, creators, and PC enthusiasts who demand nothing but the best from their systems. Built around the latest Intel Z890 chipset, it supports Intel Core Ultra (Series 2) processors with the LGA1851 socket. With support for Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0, this motherboard ensures maximum efficiency and performance under heavy workloads. Whether you’re gaming, streaming, editing, or multitasking, the Z890-H delivers the stability and responsiveness needed for next-level computing.
This motherboard is future-ready with DDR5 memory support, pushing performance boundaries with speeds of up to 9066+ MT/s (OC). It features 4x DIMM slots and supports up to 256GB of dual-channel memory, giving you plenty of flexibility for gaming rigs, workstations, or high-performance builds. ASUS also adds advanced features like DIMM Flex, NitroPath DRAM Technology, and AEMP III (Enhanced Memory Profiles), ensuring optimized stability even at extreme speeds. Overclocking has never been easier thanks to AI tuning and comprehensive BIOS tools that help users achieve top-tier performance with minimal effort.
For users who want stunning visuals, the ASUS ROG STRIX Z890-H GAMING WIFI comes equipped with both HDMI 2.1 and DisplayPort 1.4 outputs. These ports support up to 8K@60Hz via DisplayPort and 4K@60Hz via HDMI, delivering crystal-clear, ultra-smooth graphics for gaming or creative workflows. Combined with support for discrete GPUs via its PCIe 5.0 x16 slot, this motherboard ensures ultimate flexibility for both high-end gaming setups and professional multi-monitor environments.
Storage expansion is a breeze with 4x M.2 slots and 4x SATA 6Gb/s ports, giving users multiple options for high-speed NVMe SSDs and traditional drives. The M.2 slots support both PCIe 5.0 x4 and PCIe 4.0 x4 modes, enabling blazing-fast data transfers and future-proof upgrades. With support for Intel Rapid Storage Technology and RAID configurations (RAID 0/1/5/10), users can configure storage for maximum speed, redundancy, or a balance of both. The PCIe 5.0 expansion slot also ensures top-tier performance for modern GPUs and add-in cards.
To deliver premium sound, ASUS integrates the Realtek ALC1220P 7.1 Surround Sound HD Audio Codec, paired with SupremeFX Shielding Technology and a Savitech SV3H712 AMP. This setup provides 120 dB SNR stereo playback and 113 dB SNR recording input, perfect for audiophiles, gamers, and streamers who require crystal-clear sound. The motherboard includes gold-plated audio jacks, premium capacitors, and an optical S/PDIF out port, ensuring high-quality audio output for both headphones and speaker systems.
The ROG STRIX Z890-H is packed with connectivity options. It supports Wi-Fi 7 (802.11be) with 2x2 antennas, offering up to 5.8Gbps transfer speeds on the 2.4GHz, 5GHz, and 6GHz bands. For wired networking, it comes with Realtek 5Gb Ethernet with LANGuard protection, ensuring stable and secure connections. On the USB front, it features a rear I/O with 10 USB ports, including 2x USB 20Gbps Type-C ports (with up to 30W PD Fast-Charge support), 4x USB 10Gbps ports, and 4x USB 5Gbps ports. The front I/O also supports multiple USB 20Gbps, USB 5Gbps, and USB 2.0 headers, giving you unmatched flexibility for peripherals and fast-charging devices.
ASUS equips this motherboard with a robust VRM heatsink design, M.2 heatsinks, and a backplate cooling system to ensure consistent performance even under heavy loads. With 1x 24-pin main power connector and dual 8-pin +12V CPU power connectors, it guarantees stable power delivery for high-core CPUs. The board also features multiple 4-pin fan headers, an AIO pump header, and AI Cooling II with Fan Xpert 4, giving users complete control over thermal management.
