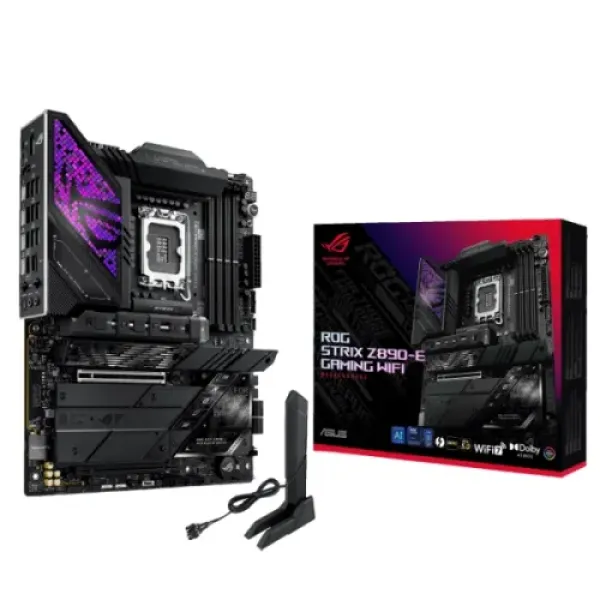

ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 ATX DDR5 Motherboard

Description

ASUS ROG STRIX Z890-E GAMING WIFI LGA1851 ATX DDR5 Motherboard

Next-Gen Performance with Intel Z890 Chipset

The ASUS ROG STRIX Z890-E GAMING WIFI is built for enthusiasts who demand the latest performance and overclocking potential. Supporting Intel Core Ultra Processors (Series 2) on the new LGA1851 socket, this motherboard is powered by the Intel Z890 chipset for maximum stability and speed. With support for Intel Turbo Boost Technology 2.0 & Turbo Boost Max Technology 3.0, it ensures your CPU hits peak frequencies efficiently.

Its ATX form factor (30.5 x 24.4 cm) fits into most mid and full-tower cases, while the robust UEFI AMI BIOS and AI Overclocking Guide give you advanced system control. Whether you’re gaming, creating, or overclocking, this board is tuned for extreme performance.

Blazing-Fast DDR5 Memory Support

Memory speed is where the Z890-E really shines. Equipped with 4 DIMM slots supporting DDR5 RAM, it allows up to 256GB of ultra-fast memory. Thanks to NitroPath DRAM Technology, DIMM Flex, and ASUS Enhanced Memory Profile III (AEMP III), you can achieve speeds of 9200+ MT/s (OC) with superior stability.

It’s fully optimized for Intel XMP profiles, ensuring effortless memory overclocking. Whether you’re gaming at high FPS or editing 4K/8K content, this motherboard ensures ultra-responsive multitasking.

PCIe 5.0 & Next-Gen Expansion

Gamers and creators get access to the fastest expansion with PCIe 5.0 support. The board offers:

• 1 x PCIe 5.0 x16 slot (with x16 or x8/x4/x4 modes) for next-gen GPUs.

• 1 x PCIe 4.0 x16 slot (x4 mode) for additional expansion.

Storage is a highlight here with 7x M.2 slots and 4x SATA 6Gb/s ports. You can install the latest PCIe 5.0 SSDs for insane read/write speeds, alongside PCIe 4.0 and SATA drives for massive storage flexibility. With support for RAID 0/1/5/10 via Intel Rapid Storage Technology, you can optimize your setup for speed, redundancy, or both.

Incredible Visuals & Multi-Display Support

The ROG STRIX Z890-E ensures top-tier display output:

• 1 x DisplayPort 1.4 with up to 8K@60Hz

• 1 x HDMI 2.1 supporting up to 8K@60Hz

• 2 x Thunderbolt 4 Type-C ports with DisplayPort video output

With support for DisplayPort 2.1, Thunderbolt 4 (UHBR20), and DSC compression, you can run high-refresh-rate monitors, dual 4K setups, or even 8K displays with ease. This makes it perfect for gamers, streamers, and creative professionals who need top-tier visual performance.

Connectivity & High-Speed Networking

This motherboard is stacked with rear and front USB options:

• Rear I/O: 14x USB ports (including 2x Thunderbolt 4 Type-C, 9x USB 10Gbps, 3x USB 5Gbps)

• Front I/O: 11x USB ports (including USB 20Gbps Type-C connector, 4x USB 5Gbps, 6x USB 2.0)

Networking is future-proof with:

• Realtek 5Gb Ethernet (LAN) with ASUS LANGuard

• Wi-Fi 7 (802.11be) with 2x2 antennas supporting 2.4/5/6 GHz bands and speeds up to 5.8Gbps

• Bluetooth 5.4 for peripherals and wireless accessories

With this combination, you’re ready for low-latency online gaming, lightning-fast file transfers, and ultra-stable wireless connectivity.

Advanced Cooling & Thermal Design

The Z890-E comes with ASUS’ advanced cooling features to maintain system stability even under overclocking:

• M.2 heatsinks with backplates

• VRM heatsink design for stable power delivery

• 7x fan headers (CPU, AIO pump, chassis fans)

• Thermal sensor header for fine-tuned cooling control

Combined with Fan Xpert 4 and AI Cooling II, your system auto-adjusts fan curves for the best balance of performance and noise.

ASUS Q-Design & DIY-Friendly Features

ASUS designed the Z890-E with builders in mind, including:

• M.2 Q-Latch, Q-Release, Q-Slide for easy SSD installation

• PCIe Slot Q-Release Slim for hassle-free GPU swaps

• Pre-mounted I/O shield for simple installation

• Q-LED indicators for quick error diagnosis

• Clear CMOS & BIOS FlashBack buttons for recovery and updates

These features make DIY builds, upgrades, and troubleshooting easier than ever.
