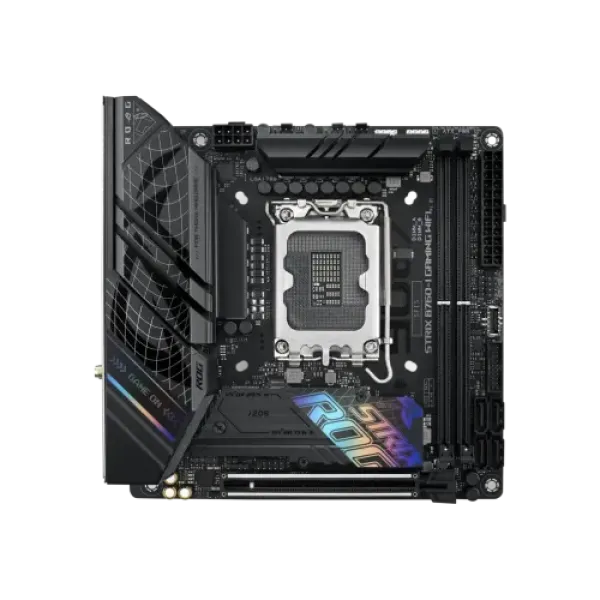

Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard

Brand: ASUS
Status:
Out Of Stock

Main Features

  • Model: ROG STRIX B760-I GAMING WIFI
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DDR5 7600(OC), Max. 96GB
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 1 x Intel 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth v5.3
Show More

Payment Methods

৳0

Pay cash discounted price and save

Pay cash discounted price and save

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPU
Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel B760 Chipset
Form Factor
Mini-ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Others
Expansion Slots
PCI
Intel 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
M.2 Socket
Others
Memory
Type
DDR5
Slots2 x DIMM
Supported Memory
7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum MemoryMax. 96GB
Others
Graphics
Graphics1 x DisplayPort**
1 x HDMI***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support 4K@60Hz as specified in DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI 2.1.
Others
Connector & Ports
HDMI
1 x HDMI
USB (s)
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C)
3 x USB 2.0 ports (3 x Type-A)

Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication moduleWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio
5 x Audio jacks
Internal I/O PortsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chasis Fan header
1 x 4-pin AIO Pump header

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 headers support additional 2 USB 2.0 ports

Miscellaneous
1 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
TPM (Trusted Platform Module )
Others
1 x DisplayPort
Others
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate

ASUS EZ DIY
-CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

AURA Sync
- Aura RGB header
- Addressable Gen 2 header
Bundled SoftwareROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- Performance And Power Saving Utility
PC Cleaner
DIGI+ VRM
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
Warranty Details
Warranty Details3 years
others

Description

The Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard is built for gamers and power users looking for high performance in a compact size. Supporting Intel’s 14th, 13th, and 12th Gen processors on the LGA1700 socket, this motherboard brings top-tier gaming performance to small-form-factor (SFF) builds.

With two DDR5 DIMM slots, it supports up to 96GB of ultra-fast 7600MHz(OC) memory, ensuring smooth gameplay and rapid data transfer. The PCIe 5.0 x16 slot is ready for next-gen graphics cards, providing higher bandwidth and performance for demanding games and creative tasks.

Connectivity is seamless with Wi-Fi 6E, Intel 2.5Gb Ethernet, and Bluetooth 5.3, delivering low-latency networking for gaming and streaming. The robust power design and optimized cooling solutions ensure stability under high workloads.

Designed for mini-ITX PC builds, the Asus ROG STRIX B760-I GAMING WIFI combines compact efficiency with premium ROG features, including AI-enhanced performance, Aura Sync RGB lighting, and an intuitive BIOS interface. It’s the perfect choice for small yet powerful gaming setups.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard in Bangladesh?

The best price of Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard in Bangladesh is 0. You can buy the Asus ROG STRIX B760-I GAMING WIFI Mini-ITX Motherboard at best price from our website.
