| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z890 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Expansion Slots | ||
| PCI | Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel® Z890 Chipset 1 x PCIe 4.0 x4 slot 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMM slots | |
| Supported Memory | Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex NitroPath DRAM Technology DIMM FIT ASUS Enhanced Memory Profile III (AEMP III) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x HDMI™ port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs*** Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 11 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)** 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported. Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| Supported Storage | Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® Z890 Chipset M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 | |
| Audio | 2 x Gold-plated audio jacks | |
| Internal I/O Ports | Back Panel I/O Ports 2 x Thunderbolt™ 4 USB Type-C® ports 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® ) 1 x USB 10Gps connector (supports USB Type-C® ) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header* * The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot. |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

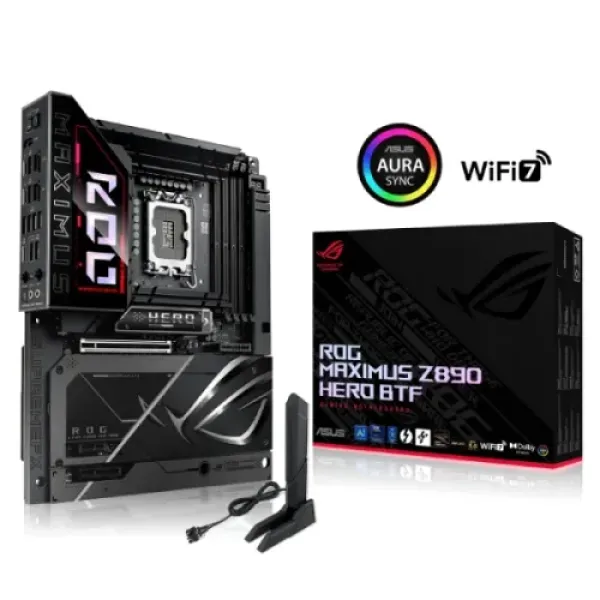

If you’re a hardcore gamer, a power user, or a PC enthusiast building a next-gen rig, the ASUS ROG MAXIMUS Z890 HERO BTF is the kind of motherboard that will make your setup feel like a futuristic powerhouse. Built on Intel’s latest Z890 chipset with support for LGA1851 Intel Core Ultra Series 2 processors, this ATX board is all about extreme performance, future-proof connectivity, and premium design. Let’s unpack what makes this motherboard one of the most advanced offerings in 2025.
At its core, the ROG Maximus Z890 Hero BTF is optimized to fully harness the power of Intel’s newest Core Ultra processors. With support for Intel Turbo Boost 2.0 and Turbo Boost Max 3.0, users get unmatched speed and efficiency for gaming, multitasking, and content creation. ASUS has also packed in an advanced BIOS system with UEFI AMI and AI-assisted overclocking tools, giving enthusiasts full control over system tuning.
Memory support on this board is nothing short of jaw-dropping. With four DDR5 DIMM slots supporting speeds of up to 9200+ MT/s (OC) and a maximum capacity of 256GB, you get flexibility and raw performance for demanding workloads. ASUS has added advanced features like DIMM Flex, NitroPath DRAM technology, AEMP III, and DIMM FIT to ensure stable and optimized memory performance even at high overclocks.
Storage expandability is also a major highlight, with six M.2 slots and four SATA 6Gb/s ports, making it ideal for users who want ultra-fast NVMe SSDs for gaming or professional workloads. Multiple slots also support PCIe 5.0 x4 modes, which guarantees blazing read/write speeds and future-proof storage compatibility. RAID support is included, covering RAID 0, 1, 5, and 10 for both PCIe and SATA drives.
For visuals, the motherboard includes one HDMI 2.1 port and two Thunderbolt 4 Type-C ports with DisplayPort functionality, capable of supporting up to 8K at 60Hz with DSC. This ensures flexibility for gamers and creators who want ultra-high-resolution displays or multi-monitor setups. Expansion slots are equally impressive, with one full PCIe 5.0 x16 SafeSlot designed for the latest high-power GPUs, alongside additional PCIe 4.0 slots for secondary cards.
ASUS has gone all-out with connectivity on the Z890 Hero BTF. The rear I/O panel alone boasts two Thunderbolt 4 ports, five USB 10Gbps ports, and four USB 5Gbps ports, while the front panel headers support an additional 10 USB ports including USB 20Gbps with up to 60W power delivery. Networking is future-ready with dual Ethernet ports — Intel 2.5Gb and Realtek 5Gb — backed by ASUS LANGuard for stability. For wireless, you get Wi-Fi 7 with Bluetooth 5.4, ensuring blazing-fast wireless speeds and ultra-low latency for online gaming and streaming.
The sound system is built with ROG SupremeFX 7.1 audio codec (ALC4082) paired with an ESS ES9219 Quad DAC, ensuring crystal-clear audio quality with support for up to 32-bit/384kHz playback. Gold-plated audio jacks, premium capacitors, and shielding technology further elevate the listening experience. Whether you’re gaming with surround sound, watching movies, or listening to high-fidelity music, the audio is immersive and distortion-free.
Get specific details about this product from customers who own it.
