| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel Z790 Chipset |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS ES9218 QUAD DAC - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors *The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot (support x16 or x8 modes) Intel Z790 Chipset 1 x PCIe 4.0 x4 slot |
|
| M.2 Socket | 5 x M.2 slots | |
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 x DIMM |
|
| Supported Memory | 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex ASUS Enhanced Memory Profile II (AEMP II) |
|
| Maximum Memory | 192GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x HDMITM port 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| USB (s) | Rear USB (Total 12 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.76Gbps transfer rate. Bluetooth v5.4 |
|
| Supported Storage | Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) Intel® Z790 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|
| Audio | 5 x Gold-plated audio jacks |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin main power connector 2 x 8-pin +12V power connector 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header 1 x Q-Installation Switch |
|
| TPM (Trusted Platform Module ) | ||
| Others | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs |
|
| Others | ||
| Special Features | Extreme OC Kit - FlexKey button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release Slim - Q-Antenna - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) with DRAM Detection - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - DTS Sound Unbound - Internet Security (1 year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Two-Way AI Noise Cancelation - Power Saving - Sonic Studio AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ Power Control - Turbo app - PC Cleaner MyAsus Intel Unison Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey MemTest86 |
|
| Warranty Details | ||
| Warranty Details | 3 years warranty | |
| others | ||

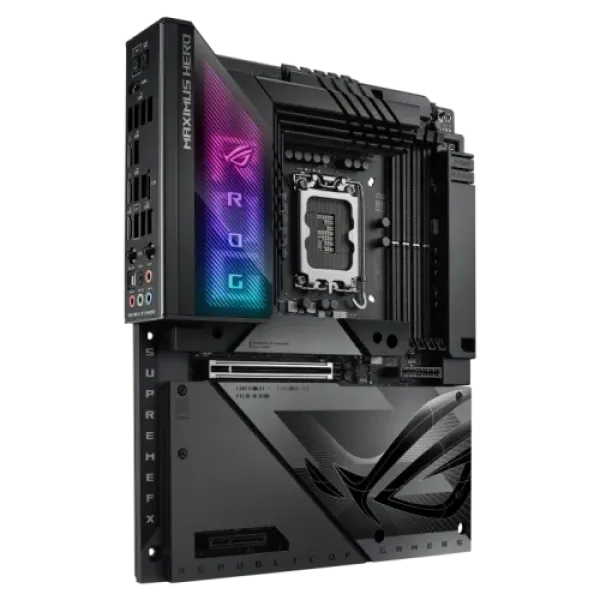

Experience unmatched power and innovation with the ASUS ROG MAXIMUS Z790 HERO BTF ATX Motherboard, built to deliver high-performance gaming and professional-grade computing. Supporting Intel’s 14th, 13th, and 12th Gen processors on the LGA1700 socket, this premium motherboard is designed for extreme overclocking, high-speed connectivity, and superior durability.
With support for up to 192GB of DDR5 RAM and overclocking speeds exceeding 8000MHz (OC), the Z790 HERO BTF ensures ultra-fast performance for gamers, creators, and professionals. PCIe 5.0 compatibility allows for high-bandwidth expansion, making it future-proof for next-gen GPUs and storage solutions.
The motherboard boasts dual Intel Thunderbolt 4 ports (USB Type-C) for ultra-fast data transfer, high-resolution display support, and seamless connectivity. Intel Wi-Fi 7 and 2.5Gb Ethernet provide lag-free gaming, rapid streaming, and stable networking performance. The inclusion of an HDMI port offers additional flexibility for multi-display setups.
Engineered with ASUS AI Overclocking, AI Cooling, and premium VRM components, the Z790 HERO BTF optimizes power delivery and thermal efficiency to ensure peak performance under intense workloads. The stunning design, complete with customizable ASUS Aura Sync RGB lighting, allows you to build a visually striking and performance-packed PC.
For those seeking cutting-edge technology, maximum overclocking potential, and next-gen connectivity, the ASUS ROG MAXIMUS Z790 HERO BTF is the ultimate choice for building a top-tier gaming or workstation rig.
Get specific details about this product from customers who own it.
