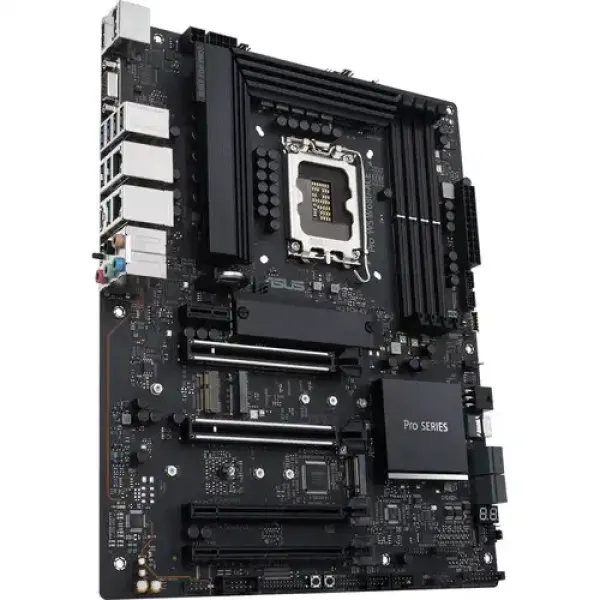

Asus Pro WS W680-ACE ATX Motherboard

Brand: ASUS
Status:
Out Of Stock

Main Features

  • Model: Pro WS W680-ACE
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5
  • Graphics Output: 1 x DisplayPort, 2 x HDMI, 1 x VGA port
  • Features: 2 x Intel 2.5Gb Ethernet, ASUS LANGuard
Show More

Payment Methods

৳0

Pay cash discounted price and save

Pay cash discounted price and save

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPUIntel® LGA 1700 socket: Ready for 14th, 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset
Intel W680 Chipset
Form FactorATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
BIOS256 Mb Flash ROM, UEFI AMI BIOS
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
Others
Expansion Slots
PCIIntel® 13th & 12th Gen Processors
- 2 x PCIe 5.0 x16 slots (support x16 or x8 / x8 mode)
Intel® W680 Chipset
- 2 x PCIe 3.0 x16 slots (supports x4 mode)
- 1 x PCIe 3.0 x1 slot
M.2 SocketTotal supports 3 x M.2 slots
Others
Memory
TypeDDR5
Slots4 x DIMM
Supported MemoryDDR5 ECC and Non-ECC Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum MemoryMax. 192GB
Others
Graphics
Graphics
supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Others
Connector & Ports
HDMI
2 x HDMI port
USB (s)Rear USB (Total 8 ports)
- 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)2 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module
M.2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
Supported StorageTotal supports 3 x M.2 slots and 8 x SATA 6Gb/s ports*
Intel 13th & 12th Gen Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel W680 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- 1 x SlimSAS Slot Support SlimSAS NVMe device (supports PCIe 4.0 x4 mode and up to 4 SATA devices)
RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio5 x Audio jacks
Internal I/O PortsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin W_PUMP+ header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x LPT header
1 x T-sensor
1 x Clear CMOS header
1 x COM Port header
1 x BMC Header
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x Flexkey button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x M.2 slot (Key E)
1 x LPT_P80 Switch
1 x Thunderbolt header
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
Others1 x DisplayPort
1 x VGA port
Others
Special FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- SafeDIMM
- SafeSlot
- BIOS FlashBack button
- BIOS FlashBack LED
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
Bundled Software
Intel® vPro support
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Power Saving
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
IT Management software supported
- ASUS Control Center Express(ACCE)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
FlexKey
Intel® vPro support
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Power Saving
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
IT Management software supported
- ASUS Control Center Express(ACCE)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
FlexKey
Warranty Details
Warranty Details3 years warranty
others

Description

The Asus Pro WS W680-ACE ATX Motherboard is a premium workstation solution designed to meet the needs of professionals, content creators, and high-end computing environments. Built on the Intel W680 chipset, this motherboard supports 14th, 13th, and 12th Gen Intel Core processors via the LGA 1700 socket, delivering exceptional processing power for demanding applications.

Supporting up to 192GB of DDR5 memory across four DIMM slots, this motherboard ensures outstanding multitasking, data processing, and stability for workstation-level performance. Its dual Intel 2.5Gb Ethernet ports, equipped with ASUS LANGuard, provide ultra-fast, reliable networking, making it ideal for high-bandwidth applications and server-based workflows.

For graphics output, the Pro WS W680-ACE includes multiple display connectivity options, featuring 1 x DisplayPort, 2 x HDMI ports, and 1 x VGA port. This versatility enables seamless multi-monitor setups for productivity-focused users.

Designed for efficiency and reliability, the motherboard incorporates advanced cooling solutions and high-quality power components to ensure stable operation under heavy workloads. It also features PCIe expansion slots for GPU acceleration and additional storage or networking enhancements, making it a powerful choice for workstations, CAD design, video editing, and AI computing.

The Asus Pro WS W680-ACE is the ultimate motherboard for professionals seeking top-tier reliability, high-speed networking, and future-proof performance in an ATX form factor.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of Asus Pro WS W680-ACE ATX Motherboard in Bangladesh?

The best price of Asus Pro WS W680-ACE ATX Motherboard in Bangladesh is 0. You can buy the Asus Pro WS W680-ACE ATX Motherboard at best price from our website.
