| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel B660 Chipset | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| BIOS | 128Mb Flash ROM | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM slots |
|
| Supported Memory | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI |
|
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 1Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
|
| Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. |
|
| RAID | ||
| Audio | 3 x Audio jacks |
|
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x SMBUS header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | ||
| Others | Display Port (s) 2 x DisplayPort D-Sub (s) 1 x D-Sub |
|
| Others | ||
| Special Features | ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard |
|
| Bundled Software | ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
|
| Warranty Details | ||
| Warranty Details | 3 Years |
|
| others | ||

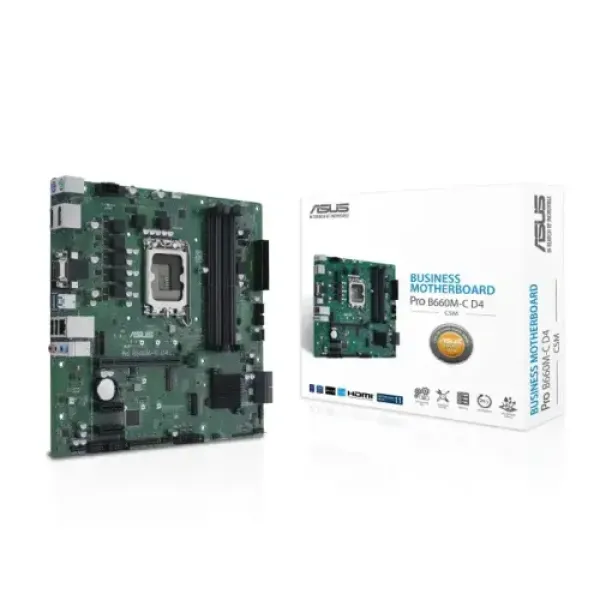

The ASUS Pro B660M-C D4-CSM Micro-ATX motherboard is a powerful and reliable choice for professionals, businesses, and IT departments looking for stability and performance. Designed to support 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, it provides exceptional computing power with its LGA1700 socket and B660 chipset.
This motherboard features four DDR4 slots, supporting up to 128GB of memory, ensuring seamless multitasking and enhanced system performance. It offers excellent connectivity options with multiple display outputs, including two DisplayPorts, HDMI, and D-Sub, allowing for flexible multi-monitor configurations essential for business applications.
Equipped with Intel 1Gb Ethernet, the ASUS Pro B660M-C D4-CSM ensures fast and stable network connectivity, ideal for enterprise environments. ASUS Corporate Stable Model (CSM) support guarantees long-term reliability, security, and IT manageability, making it an excellent option for office setups, corporate workstations, and government institutions.
With multiple PCIe slots, USB ports, and robust power delivery, this motherboard is optimized for professional workloads, ensuring smooth data processing, secure networking, and long-lasting durability. Whether you're setting up a business workstation or an enterprise computing solution, the ASUS Pro B660M-C D4-CSM delivers dependable performance at a competitive price in Bangladesh.
