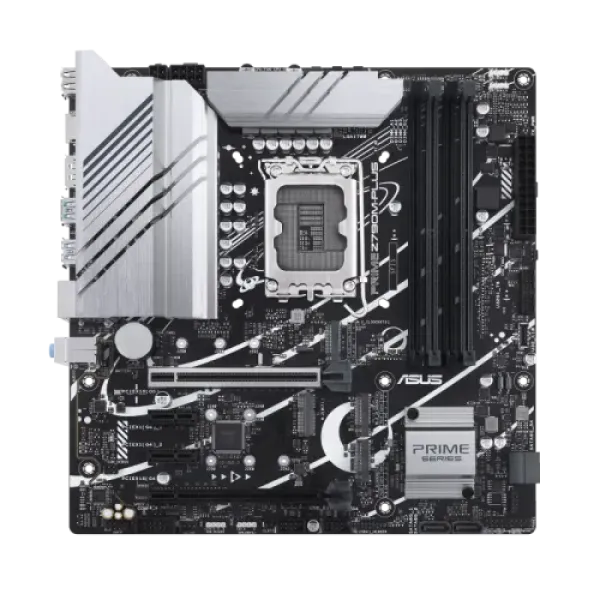

ASUS PRIME Z790M-PLUS-CSM DDR5 mATX Motherboard

Brand: ASUS
Status:
Out Of Stock

Main Features

  • Model: PRIME Z790M-PLUS-CSM
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7200+(O.C.)
  • Graphics Output: 1x HDMI port, 1x DisplayPort
  • Features: 1 x Intel 1Gb Ethernet
Show More

Payment Methods

৳0

Pay cash discounted price and save

Pay cash discounted price and save

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPUIntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium® Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
ChipsetIntel Z790 Chipset
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Others
Expansion Slots
PCIIntel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
M.2 Socket3 x M.2 slots
Others
Memory
Type
DDR5
Slots4 x DIMM
Supported Memory4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory
192GB
Others
Graphics
GraphicsSupports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Others
Connector & Ports
HDMI
1 x HDMI port
USB (s)Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless Communication moduleM.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately.
Supported StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAIDIntel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio3 x Audio jacks
Internal I/O PortsFan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin + 12V Power connector
1 x 4-pin + 12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )
OthersDisplay Port (s)
1 x DisplayPort
Others
Special FeaturesASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Bundled SoftwareASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Details
Warranty Details3 years warranty
others

Description

The ASUS PRIME Z790M-PLUS-CSM DDR5 mATX motherboard is designed to deliver exceptional performance and stability for Intel’s latest 14th, 13th, and 12th Gen processors. Built with the LGA 1700 socket, this motherboard is optimized for high-speed computing, making it an ideal choice for gaming, professional applications, and multitasking.

With support for up to 192GB of DDR5 RAM at speeds of 7200+ MT/s (O.C.), this motherboard allows for seamless multitasking and enhanced gaming performance. DDR5 technology provides faster data transfer rates and improved power efficiency compared to previous generations, making it a future-proof solution for high-end PC builds.

The ASUS PRIME Z790M-PLUS-CSM is equipped with advanced display connectivity, including HDMI and DisplayPort outputs, ensuring high-definition visuals for gaming, content creation, and productivity applications. The inclusion of Intel 1Gb Ethernet offers stable and reliable networking performance, making it an excellent choice for online gaming and professional workloads.

Designed with ASUS' renowned 5X Protection III, the motherboard offers superior durability with safeguards against power fluctuations, electrostatic discharge, and overheating. Additional features like AI-powered cooling, PCIe 4.0 support, and M.2 slots for ultra-fast SSD storage enhance the motherboard’s overall efficiency.

Whether you're a gamer building a high-performance rig or a professional seeking a reliable workstation, the ASUS PRIME Z790M-PLUS-CSM DDR5 mATX motherboard provides the perfect balance of power, stability, and advanced features to elevate your computing experience.
