Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳41,600
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

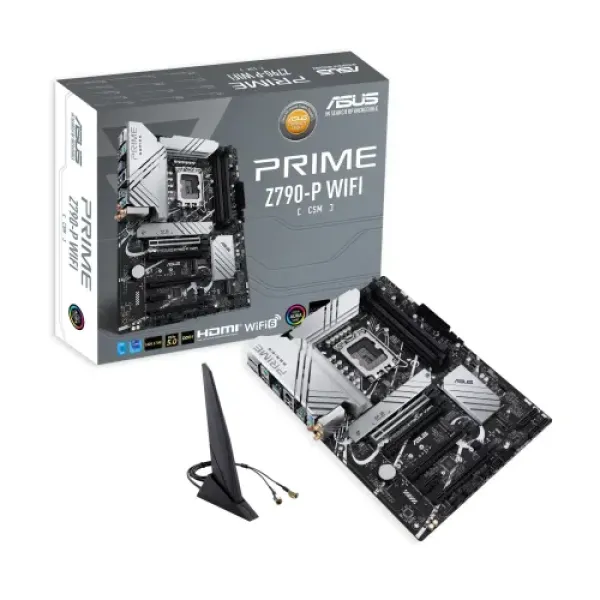

The ASUS PRIME Z790-P WIFI-CSM is built for enthusiasts and professionals who want the best of Intel’s latest technology. Supporting 14th, 13th, and 12th Gen Intel Core processors, including Pentium Gold and Celeron, it utilizes the LGA1700 socket and Intel Z790 chipset to deliver cutting-edge performance. With support for Intel Turbo Boost 2.0 and Turbo Boost Max 3.0, this board is ready to maximize CPU clock speeds for gaming, content creation, and multitasking.
With 4x DDR5 DIMM slots, the PRIME Z790-P WIFI-CSM supports up to 128GB of memory with blazing speeds up to 7200+ MHz (OC). Thanks to OptiMem II technology, signal integrity is improved for more stable overclocks, while Intel XMP profiles make memory tuning simple. Whether for gaming rigs, creative workflows, or workstation builds, this motherboard offers the memory performance to match.
This motherboard features 1x PCIe 5.0 x16 slot for next-generation graphics cards, ensuring high-bandwidth performance for modern GPUs. Additional 3x PCIe 4.0 x16 slots (x4 mode) and 1x PCIe 3.0 x1 slot provide flexibility for add-on cards such as capture cards, sound cards, or storage controllers. With robust SafeSlot Core+ protection, heavy GPUs stay secure during long gaming or editing sessions.
Connectivity is a strong suit for the Z790-P WIFI-CSM. On the rear I/O, you’ll find 8 USB ports, including USB 3.2 Gen 2x2 Type-C, Gen 2 Type-A, Gen 1, and multiple USB 2.0 options. The front panel expands this further with 9 additional USB ports, including USB Type-C. For networking, you get a Realtek 2.5Gb Ethernet port and Wi-Fi 6 (802.11ax) with dual-band support, plus Bluetooth 5.2, ensuring high-speed, reliable wireless and wired connections.
The PRIME Z790-P WIFI-CSM is storage-ready, supporting 3x M.2 slots and 4x SATA 6Gb/s ports. With PCIe 4.0 x4 and SATA modes available, users can mix ultra-fast NVMe SSDs with traditional HDDs. Intel Rapid Storage Technology enables RAID 0/1/5/10 configurations, ensuring speed, redundancy, and data protection depending on your needs. Whether for gaming load times or professional file management, storage performance is rock-solid.
Audio is powered by the Realtek 7.1 Surround Sound HD Audio CODEC with premium capacitors, dedicated audio PCB layers, and shielding for cleaner signals. With support for 24-bit/192 kHz playback, immersive surround sound is available for gamers, streamers, and creators. The board also offers multi-streaming and jack-retasking, making it ideal for both casual users and professional audio setups.
The ASUS PRIME Z790-P WIFI-CSM ATX Motherboard delivers the perfect balance of power, stability, and expandability for gamers, content creators, and professionals. Featuring Intel 14th/13th/12th Gen CPU support, DDR5 memory up to 7200+ MHz, PCIe 5.0 GPU readiness, Wi-Fi 6, 2.5Gb Ethernet, triple M.2 slots, and premium ASUS protection, this motherboard ensures both performance and longevity. Backed by a 3-year warranty, it’s a future-ready choice for next-gen PC builds.
