| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset |
|
| Form Factor | ATX Form Factor 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm ) |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI |
|
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* *Wi-Fi module is sold separately. |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | Display Port (s) 1 x DisplayPort |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

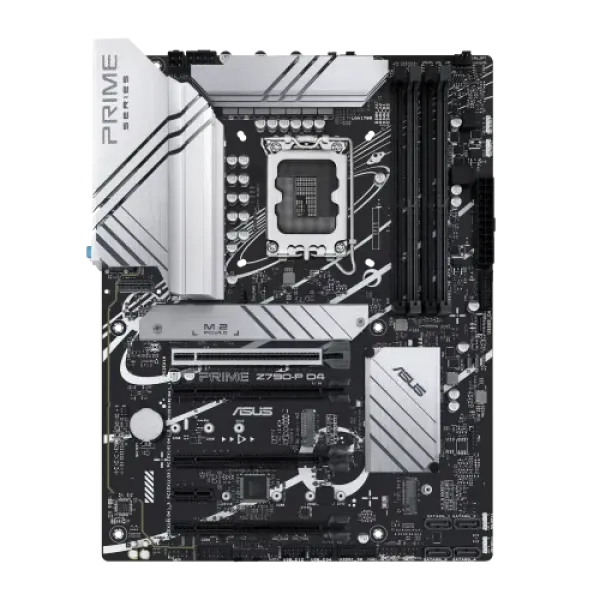

The ASUS PRIME Z790-P D4-CSM ATX motherboard is engineered to provide a solid foundation for gaming, content creation, and professional workloads. With support for Intel 14th, 13th, and 12th Gen processors, this motherboard utilizes the LGA 1700 socket to deliver powerful computing performance for demanding applications.
It features four DIMM slots, allowing up to 128GB of DDR4 RAM with speeds reaching 5333MHz (OC), ensuring a smooth and lag-free experience in gaming, video editing, and intensive workloads. The motherboard supports advanced graphics with both DisplayPort and HDMI outputs, providing users with high-definition visuals and multi-monitor support.
For connectivity, the ASUS PRIME Z790-P D4-CSM comes equipped with Realtek 2.5Gb Ethernet, offering ultra-fast and stable network speeds ideal for gaming, streaming, and professional applications. Additionally, ASUS has incorporated multiple cooling solutions, including AI-powered fan controls, to maintain system stability and prevent overheating under heavy loads.
Expansion and storage options are well-covered with PCIe 4.0 slots for high-speed SSDs and GPUs, ensuring enhanced system performance. ASUS' exclusive 5X Protection III safeguards the motherboard with high-quality components and enhanced power delivery, making it a durable and reliable choice for long-term use.
Whether you're an enthusiast building a high-performance gaming PC or a professional in need of a dependable workstation, the ASUS PRIME Z790-P D4-CSM ATX motherboard delivers exceptional performance, stability, and efficiency in a feature-rich package.
