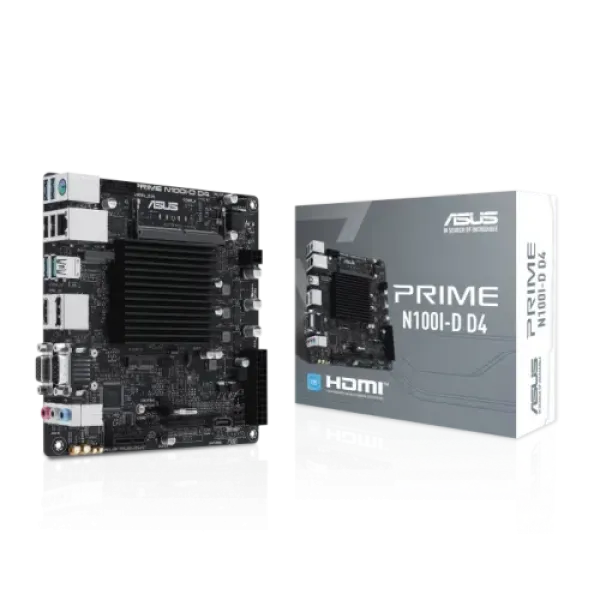

Asus PRIME N100I-D D4 Mini-ITX DDR4 Motherboard

Description

ASUS PRIME N100I-D D4: A Compact and Efficient Mini-ITX DDR4 Motherboard

The ASUS PRIME N100I-D D4 Mini-ITX motherboard is an excellent choice for compact PC builds that require reliable performance and energy efficiency. Featuring an onboard Intel Processor N100, advanced connectivity, and durable design, this motherboard delivers exceptional value for mini-ITX setups.

Overview

The ASUS PRIME N100I-D D4 is built to support Intel’s onboard N100 processor with Turbo Boost Technology 2.0, ensuring energy-efficient performance for everyday computing tasks. With its Mini-ITX form factor, this motherboard is perfect for space-constrained builds without compromising functionality.

Key Features

Processor and Performance

• Comes with an onboard Intel Processor N100, eliminating the need for an external CPU.
• Features Intel Turbo Boost Technology 2.0, enhancing system responsiveness.

Memory and Storage

• Memory:
  • 1 x SO-DIMM slot supporting DDR4 memory with speeds up to 3200 MHz.
  • Maximum supported memory of 16GB, ideal for lightweight multitasking and daily operations.
• Storage:
  • 1 x M.2 Socket 3 (Key M) for high-speed NVMe SSDs (PCIe 3.0 x2).
  • 1 x SATA 6Gb/s port for additional storage options.

Expansion and Connectivity

• Expansion Slots:
  • 1 x PCIe 3.0 x1 slot, perfect for adding compatible expansion cards.
• USB Ports:
  • Rear I/O:
    • 2 x USB 3.2 Gen 2 (10Gbps) Type-A ports.
    • 2 x USB 3.2 Gen 1 (5Gbps) Type-A ports.
    • 2 x USB 2.0 Type-A ports.
  • Front I/O:
    • 1 x USB 3.2 Gen 1 header, supporting 2 additional USB 3.2 Gen 1 ports.
    • 1 x USB 2.0 header, supporting 2 additional USB 2.0 ports.
• Display Connectivity:
  • 1 x HDMI 2.1 port, supporting 4K resolution at 60Hz.
  • 1 x DisplayPort 1.4, supporting 4K resolution at 60Hz.
  • 1 x VGA port, ideal for legacy displays.
• Networking:
  • 1 x Realtek 1Gb Ethernet port with ASUS LANGuard protection for stable and secure networking.
  • 1 x M.2 slot (Key E) for Wi-Fi and Bluetooth modules (sold separately).

Audio Features

• Realtek 7.1 Surround Sound High Definition Audio CODEC for immersive audio.
• Enhanced by Audio Shielding and Premium Capacitors, delivering up to 24-Bit/192 kHz playback.
• 3 x Audio jacks for versatile audio output options.

Reasons to Buy the ASUS PRIME N100I-D D4

1. Compact Form Factor: Perfect for small and efficient PC builds.
2. Onboard Processor: Integrated Intel N100 processor eliminates the need for additional CPU hardware.
3. Multiple Connectivity Options: USB 3.2 ports, HDMI 2.1, and DisplayPort provide versatility for modern devices.
4. Durable Build: Designed with ASUS LANGuard, Overvoltage Protection, and ESD Guards for reliability.
5. Immersive Audio: High-definition audio codec ensures a premium sound experience.

Reasons Not to Buy

1. Limited Memory Capacity: Supports a maximum of 16GB, which may not suffice for demanding workloads.
2. No Built-in Wi-Fi or Bluetooth: Requires an additional module for wireless connectivity.
