| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H770 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel H770 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | 3 x M.2 | |
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 x DIMM | |
| Supported Memory | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 192GB |
|
| Others | ||
| Graphics | ||
| Graphics | x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI |
|
| USB (s) | Rear USB (Total 8 ports) 3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C®) 3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
|
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Back Panel I/O Ports 3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C) 3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
|
| Others | Display Port (s) 1 x DisplayPort |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 years |
|
| others | ||

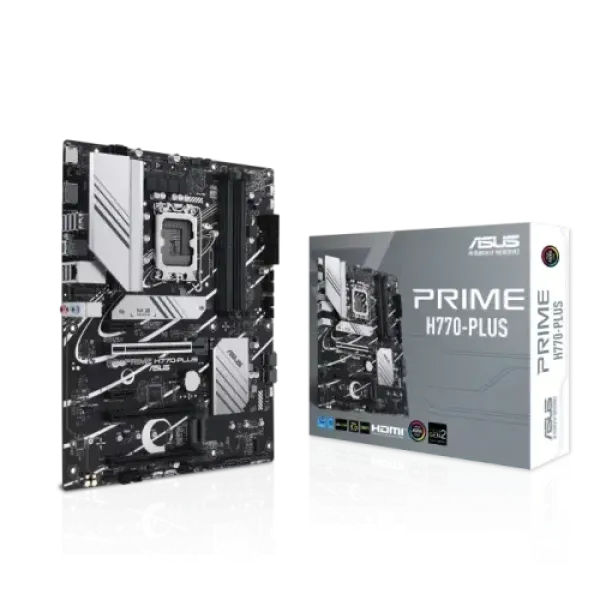

The ASUS PRIME H770-PLUS ATX motherboard is built to maximize the performance of Intel’s latest 14th, 13th, and 12th Gen processors with the LGA 1700 socket. This premium motherboard is designed for high-end computing, offering exceptional speed, connectivity, and stability for gaming, content creation, and professional workloads.
Supporting up to 192GB of DDR5 memory at speeds of 7200+ MT/s (overclocked), the PRIME H770-PLUS ensures seamless multitasking and high-speed performance. Its expansion capabilities make it an excellent choice for users looking to build a powerful and future-proof PC.
For graphics output, the motherboard features both DisplayPort and HDMI, providing excellent connectivity for high-resolution displays. Additionally, Realtek 2.5Gb Ethernet ensures high-speed and stable networking, whether for gaming, streaming, or professional use.
Designed with ASUS’ renowned 5X Protection III, this motherboard offers enhanced durability, including robust power delivery, comprehensive cooling, and built-in safeguards to ensure long-term stability. With a perfect blend of performance, reliability, and future-ready features, the ASUS PRIME H770-PLUS is an excellent choice for PC builders who demand top-tier hardware.
Get specific details about this product from customers who own it.
