| Basic Information | ||
| Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H510 Chipset | |
| Form Factor | microATX: 22.6cm x 21.1cm |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | Intel 11th & 10th Gen Processors 1 x PCIe 4.0/ 3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) |
|
| Others | ||
| Memory | ||
| Type | DDR4 |
|
| Slots | 2x DIMM |
|
| Supported Memory | 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz 11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4 / 2.0 |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI 1.4 / 2.0 |
|
| USB (s) | Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: Total 5 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel I219-V 1Gb Ethernet |
|
| Wireless Communication module | Intel Wi-Fi 5 9462NGW Wi-Fi 5 (802.11 a/b/g/n/ac) Supports 2.4/5GHz frequency band Bluetooth v5.1 |
|
| Supported Storage | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | ||
| Audio | Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | Display Port (s) 1 x DisplayPort 1.4 D-Sub (s) 1 x D-Sub |
|
| Others | ||
| Special Features | Armoury Crate - AURA Creator - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years | |
| others | ||

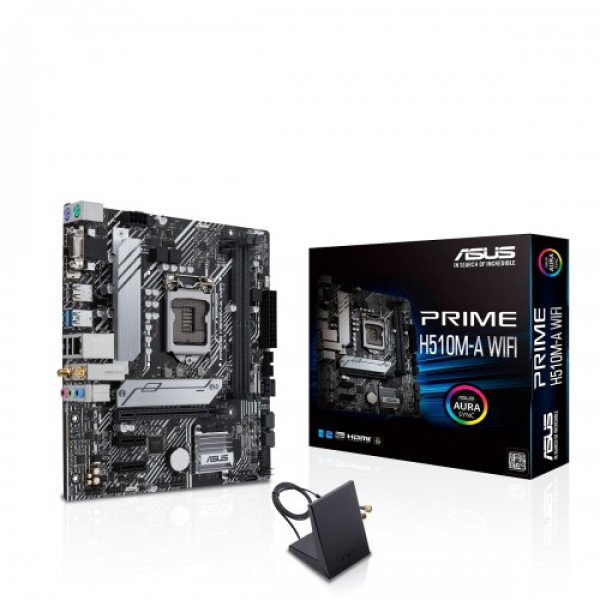

The ASUS PRIME H510M-A WIFI Micro ATX motherboard combines powerful performance, cutting-edge technology, and a sleek aesthetic, making it the ideal choice for both gamers and professionals. This motherboard is built to support Intel's 10th and 11th Gen processors, utilizing the LGA 1200 socket for excellent processing power and speed.
With ultrafast connectivity options, the PRIME H510M-A WIFI provides an integrated Wi-Fi solution, ensuring you stay connected to the internet without additional hardware. Whether you're streaming, gaming, or working remotely, this motherboard offers the high-speed connectivity you need.
Designed with cooling in mind, the PRIME H510M-A WIFI features comprehensive thermal solutions, ensuring that your system remains stable and cool even under load. The PCH heatsink, combined with efficient airflow designs, helps maintain optimal temperature performance during intensive use.
The motherboard's standout feature is its Aura Sync RGB lighting, which brings style and customization to your build. With customizable lighting effects that sync with other Aura-compatible devices, you can create a unique look that matches your system's theme.
Built for reliability and durability, the ASUS PRIME H510M-A WIFI motherboard offers stability for everyday computing, gaming, and multitasking. Whether you're building a new PC or upgrading an existing one, it provides a strong foundation for all your needs.
