| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | INTEL B860 | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM)*" Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | Rear USB (Total 6 ports) 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps port (1 x USB Type-C®) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module is sold separately. |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|
| RAID | SATA RAID 0/1/5/10 | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Details | ||
| Warranty Details | 3 Year warranty | |

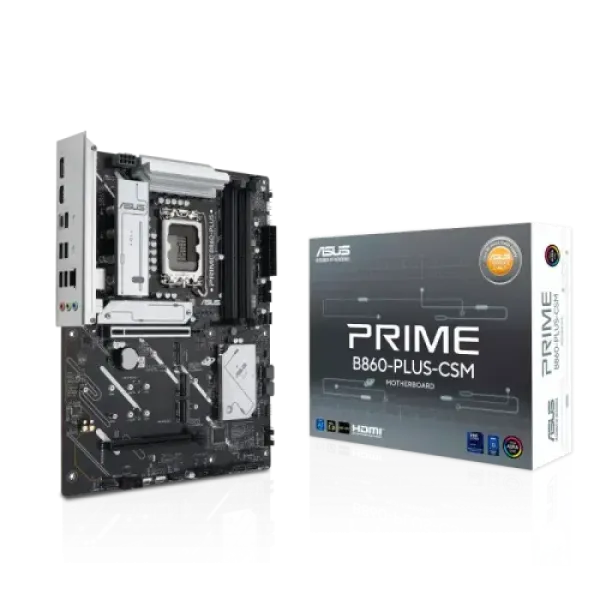

The Asus PRIME B860-PLUS-CSM is built to deliver stability, performance, and expandability for professionals, creators, and power users. Powered by the Intel B860 chipset and compatible with the latest Intel Core Ultra (Series 2) processors on the LGA1851 socket, it ensures efficient performance for heavy workloads and long-term use. With dual 128Mb UEFI AMI BIOS, you get secure updates, smooth booting, and easy system configuration—making it reliable for work and gaming alike.
This ATX motherboard supports 4 DIMM slots, with a maximum memory capacity of 256GB DDR5 RAM. It enables blazing memory speeds of up to 8666+ MT/s (OC), optimized by Intel XMP and ASUS Enhanced Memory Profile III (AEMP III) for better stability and performance. Expansion is covered with 1 PCIe 5.0 x16 slot for graphics, plus an additional PCIe 4.0 x16 slot, giving users flexibility for GPUs, high-speed storage, or advanced networking cards.
The PRIME B860-PLUS-CSM is well-equipped for modern visuals with 1x HDMI 2.1 port and 1x DisplayPort 1.4a, delivering up to 4K@60Hz resolution. Whether you’re gaming, editing, or running multiple monitors, the display outputs ensure sharp clarity and seamless refresh rates. Integrated support through the CPU also allows optimized efficiency for professional workflows or casual entertainment setups.
Connectivity is future-ready with a total of 13 USB ports (6 rear, 7 front). These include USB 20Gbps Type-C, USB 10Gbps, USB 5Gbps, and legacy USB 2.0, ensuring compatibility for modern and older devices. Networking is handled by Realtek 2.5Gb Ethernet with ASUS LANGuard, offering fast and secure connections for gaming, video streaming, or productivity. For wireless connectivity, an M.2 Key E slot is included for Wi-Fi modules, giving flexibility to upgrade to the latest wireless standards.
Storage is versatile with 3 M.2 slots and 4 SATA 6Gb/s ports, supporting both ultra-fast NVMe SSDs and traditional hard drives. One M.2 slot supports PCIe 5.0 x4, while the others utilize PCIe 4.0 x4, providing high-speed options for boot drives and gaming libraries. Additionally, Intel Rapid Storage Technology with RAID 0/1/5/10 support allows users to set up redundancy, performance-driven arrays, or secure storage depending on their needs.
With Aura Sync RGB lighting, Aura RGB headers, and Addressable Gen 2 headers, users can fully customize their builds with synchronized RGB setups. Bundled ASUS software like Armoury Crate, Fan Xpert 2+, AI Advisor, and ASUS CPU-Z provide control over performance and lighting. Extras like Adobe Creative Cloud (trial), Norton 360 Deluxe (trial), and WinRAR add extra value for creators and business users.
