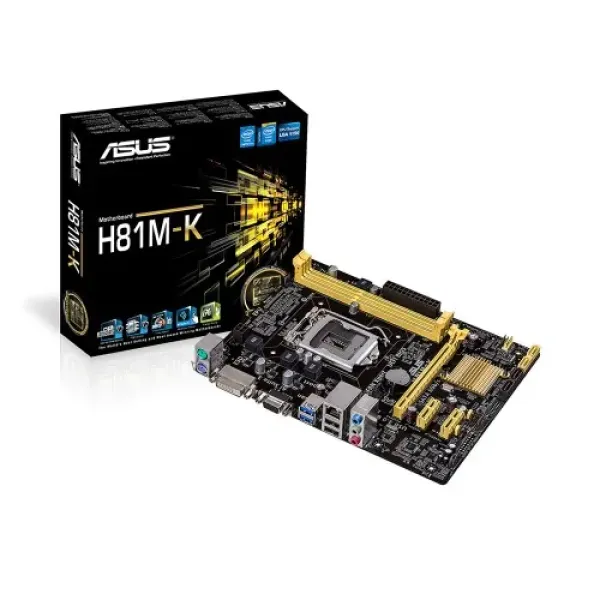

Asus H81M-K 4th Gen DDR3 Motherboard

Description

Asus H81M-K 4th Gen DDR3 Motherboard Price in Bangladesh

The ASUS H81M-K is a reliable micro-ATX motherboard designed for Intel 4th Generation processors. With DDR3 memory support, dual-channel architecture, USB 3.1, and integrated graphics, it caters to those building a budget-friendly yet efficient system for everyday use or light productivity tasks.

Overview

Powered by the Intel H81 chipset, the ASUS H81M-K supports Intel Core i7, i5, i3, Pentium, and Celeron processors. Its compact micro-ATX form factor is perfect for small builds without compromising on performance. It provides modern features like USB 3.1, integrated graphics, and support for Intel Turbo Boost Technology 2.0, making it a dependable choice for entry-level PC setups.

Key Features

Processor Compatibility

• Socket: Intel LGA1150.
• Supported CPUs: 4th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors.
• Performance Enhancements: Supports Intel Turbo Boost Technology 2.0 and Intel 22nm CPUs for enhanced processing power.

Memory Performance

• Type: DDR3 with dual-channel memory architecture.
• Capacity: Supports up to 16GB of non-ECC, un-buffered memory.
• Speeds: Compatible with 1600/1333/1066 MHz memory modules.
• Overclocking: Intel Extreme Memory Profile (XMP) supported for memory tuning.

Graphics Support

• Integrated Graphics Processor:
  • DVI-D Port: Max resolution of 1920 x 1200 @ 60Hz.
  • D-Sub Port: Max resolution of 1920 x 1200 @ 60Hz.
  • Supports Intel InTru 3D, Quick Sync Video, and Clear Video HD Technology.
• Max Shared Memory: 1024MB for optimal graphical performance.

Storage and Expansion

• SATA Ports:
  • 2 x SATA 6Gb/s for high-speed storage.
  • 2 x SATA 3Gb/s for additional storage devices.
• PCIe Slots:
  • 1 x PCIe x16 slot for GPUs.
  • 2 x PCIe 2.0 x1 slots for expansion cards.

Connectivity Options

• USB Ports:
  • Rear: 2 USB 3.1 Gen 1 and 2 USB 2.0 ports.
  • Mid-board: 4 USB 2.0 ports via headers.
• LAN: Realtek 8111G Gigabit LAN for fast and reliable networking.

Audio

• Audio Codec: Realtek ALC887/897 8-Channel High Definition Audio CODEC.
• Features: Front panel jack-retasking and up to 24-Bit/192kHz playback for immersive sound quality.

Thermal and Durability Features

• ASUS Quiet Thermal Solution: Stylish fanless heatsink design with ASUS Fan Xpert for efficient cooling.
• ASUS Exclusive Features: GPU Boost, USB 3.0 Boost, Anti-Surge, Disk Unlocker, and Network iControl.
• ASUS EZ DIY: Simplified setup with CrashFree BIOS 3 and EZ Flash 2.

Reasons to Buy

1. Supports 4th Gen Intel Core processors for solid performance in budget builds.
2. Compact micro-ATX form factor suitable for smaller PC cases.
3. Dual SATA 6Gb/s ports and USB 3.1 Gen 1 for fast data transfers.
4. Integrated graphics with DVI-D and D-Sub support for HD displays.
5. Reliable and durable with ASUS-exclusive technologies like Anti-Surge and Fan Xpert.

Reasons Not to Buy

1. Limited memory support of up to 16GB DDR3, which may not suffice for modern multitasking needs.
2. Lacks built-in Wi-Fi, which could be inconvenient for wireless network users.

Price and Availability

The ASUS H81M-K motherboard comes with a 3-year manufacturing warranty, ensuring long-term reliability. It is widely available through online platforms and local hardware retailers at an affordable price point.
