Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳23,000
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | INTEL B860 | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm ) |
|
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | 2x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 2 | |
| Supported Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | Maximum Memory Capacity 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | SATA RAID 0/1/5/10 | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard |
|
| Warranty Details | ||
| Warranty Details | 3 Year warranty | |

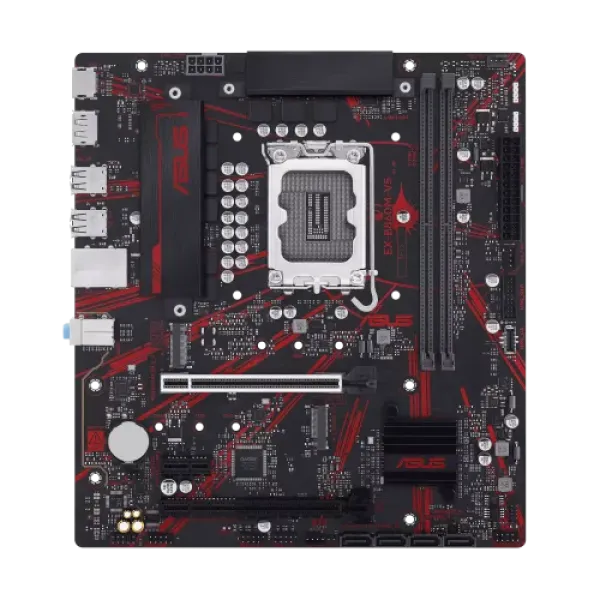

The ASUS EX-B860M-V5 Micro-ATX DDR5 Motherboard is designed to support the latest Intel Core Ultra Processors (Series 2) with the powerful LGA1851 socket. Built on the Intel B860 chipset, this board delivers a stable foundation for gaming, productivity, and content creation. With support for advanced CPU features, users can enjoy enhanced performance, reduced latency, and efficiency in multitasking. It also includes ASUS-exclusive optimizations, ensuring long-term stability even under heavy workloads.
This motherboard is equipped with 2x DDR5 DIMM slots, supporting up to 128GB RAM with blazing-fast speeds up to 8800+ MT/s (OC). With Intel XMP support and ASUS Enhanced Memory Profile III (AEMP III), overclocking is simplified, allowing you to push your system’s performance without stability concerns. For expansion, you get 1x PCIe 4.0 x16 slot (GPU), 1x PCIe 4.0 x16 (x4 mode), and 1x PCIe 4.0 x1 slot, giving flexibility for graphics cards, storage controllers, and add-on cards.
The EX-B860M-V5 comes with both HDMI 2.1 and DisplayPort 1.4a, supporting 4K resolution at 60Hz for ultra-clear visuals. Whether you’re gaming, streaming, or working with creative content, the display support ensures sharp, vibrant output. Graphics performance depends on the installed CPU, but with PCIe slots, users can easily upgrade to dedicated GPUs for advanced gaming or professional graphics work.
Stay connected with a wide range of ports including 6 rear USB ports (2x USB 5Gbps, 4x USB 2.0) and 7 front USB connections, including USB Type-C with 5V/3A power delivery. Networking is powered by a Realtek 2.5Gb Ethernet port with ASUS LANGuard, ensuring ultra-fast and secure connections, ideal for gamers and professionals who rely on stable, low-latency internet.
The motherboard features 2x M.2 slots and 4x SATA 6Gb/s ports, offering flexibility for both NVMe SSDs and traditional drives. The M.2_1 slot supports PCIe 5.0 x4 for ultra-fast boot drives, while the M.2_2 slot supports PCIe 4.0 x4 for additional high-speed storage. With support for SATA RAID 0/1/5/10, users can balance speed, storage, and redundancy for performance and data protection.
Equipped with a Realtek 7.1 Surround Sound HD Audio CODEC, the EX-B860M-V5 delivers immersive sound for gaming, movies, and music. With features like jack-detection, multi-streaming, and front panel jack-retasking, the audio system adapts to different setups. Premium components ensure clear, interference-free sound, while support for 24-bit/192 kHz playback enhances the entertainment experience.
