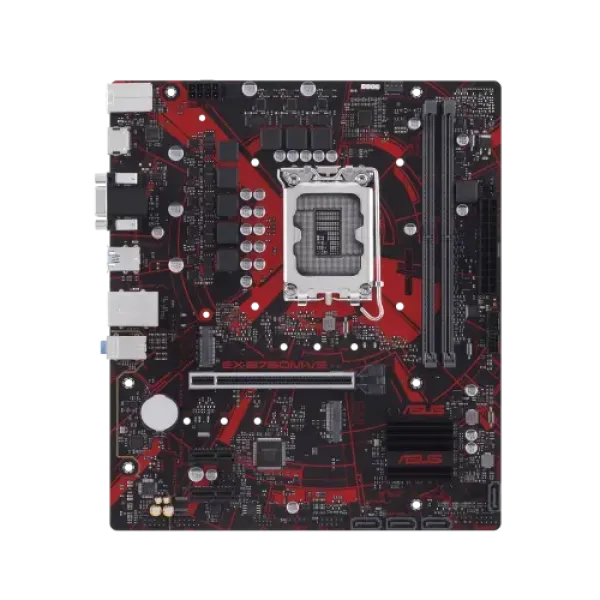

ASUS EX-B760M-V5 D4 mATX DDR4 Motherboard

Brand: ASUS
Status:
৳16,300
6% off
৳17,800

Main Features

  • Model: EX-B760M-V5 D4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB 5333(O.C.)
  • Graphics Output: 1x HDMI port, 1x DisplayPort
  • Features: 1x VGA port, 1 x HDMI port
Show More

Payment Methods

৳16,300

Pay cash discounted price and save

Pay cash discounted price and save

৳ 1,483/ month

EMI available for 12 months on regular price: ৳17,800

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPUIntel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
ChipsetIntel B760 Chipset
Form FactormATX Form Factor
9.6 inch x 8.3 inch(24.4cm x 21.1cm)
AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
Expansion Slots
PCIIntel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
2 x PCIe 4.0 x1 slots
M.2 Socket2 x M.2 slots
Memory
TypeDDR4
Slots2x DIMM
Supported Memory5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Maximum MemoryMax. 64GB
Graphics
GraphicsSupports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI1 x HDMI port
USB (s)1 x VGA port
LAN Port (s)1 x Realtek 2.5Gb Ethernet port
Supported StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio3x Audio jacks
Internal I/O PortsInternal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
OthersASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS EZ DIY
- ProCool
Non-stop Action
- Lightning Boot
Non-stop Challenger
- ASUS iCafe labs certified
Non-stop Durability
- Luminous anti-moisture coating
- USBGuard
Warranty Details
Warranty Details3 years warranty

Description

  • ASUS EX-B760M-V5 D4 mATX Motherboard: Intel LGA1700 Processors Price in Bangladesh

    The ASUS EX-B760M-V5 D4 micro-ATX motherboard is built to cater to Intel 12th, 13th, and 14th Gen processors, offering excellent compatibility, reliability, and performance. With DDR4 memory support, PCIe 4.0, and comprehensive connectivity options, this motherboard is an ideal choice for gamers, professionals, and PC enthusiasts seeking efficiency in a compact build.

    Overview

    Designed with the Intel B760 chipset, the ASUS EX-B760M-V5 D4 ensures seamless integration with the latest Intel Core processors, including support for Intel Turbo Boost Max Technology 3.0. Its mATX form factor is compact yet powerful, offering premium features like advanced audio solutions, dual M.2 slots, and durable build quality for a dependable computing experience.

    Key Features

    Processor Compatibility

    • Socket: Intel LGA1700
    • Supported CPUs: Intel Core 14th, 13th, and 12th Gen, including Pentium Gold and Celeron processors.
    • Performance Enhancements: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 for enhanced CPU performance.

    Memory Performance

    • Type: DDR4 with dual-channel memory architecture.
    • Capacity: Up to 64GB of non-ECC, un-buffered memory.
    • Overclocking Support: Memory speeds up to 5333 MHz (OC) with Intel Extreme Memory Profile (XMP) support for optimized performance.

    Graphics Support

    • Ports:
      • 1 x HDMI 2.1 (supports 4K@60Hz resolution).
      • 1 x VGA port for additional display compatibility.

    Storage and Expansion

    • M.2 Slots:
      • 2 x PCIe 4.0 x4 slots (Key M), supporting type 2242/2260/2280 drives.
    • SATA Ports: 4 x SATA 6Gb/s ports.
    • RAID: Intel Rapid Storage Technology supports RAID 0/1/5/10 for advanced storage setups.
    • Expansion Slots:
      • 1 x PCIe 4.0 x16 slot for GPUs.
      • 2 x PCIe 4.0 x1 slots for additional devices.

    Connectivity Options

    • USB Ports:
      • Rear: 6 ports, including 4 USB 3.2 Gen 1 and 2 USB 2.0 ports.
      • Front: 6 ports via headers, including USB 3.2 Gen 1 and USB 2.0.
    • LAN: Realtek 2.5Gb Ethernet for ultra-fast and stable networking.

    Target Audience

    The ASUS EX-B760M-V5 D4 motherboard is ideal for gamers, content creators, and professionals who need a reliable and efficient system in a compact mATX form factor. Its compatibility with the latest Intel processors and advanced features makes it suitable for multitasking, gaming, and productivity tasks.

    Reasons to Buy

    1. Supports Intel Core 14th, 13th, and 12th Gen processors with PCIe 4.0 and DDR4 memory for high performance.
    2. Compact mATX form factor with comprehensive connectivity options, including USB 3.2 Gen 1 and HDMI 2.1.
    3. Dual M.2 slots and RAID support for flexible and fast storage solutions.
    4. Durable design with ASUS-exclusive protection features like anti-moisture coating and SafeSlot Core+.
    5. Affordable option for those looking to build a dependable system without overspending.

    Reasons Not to Buy

    1. Limited to DDR4 memory, which may not appeal to users seeking DDR5 compatibility.
    2. No built-in Wi-Fi, which could be inconvenient for wireless network users.

    Price and Availability

    The ASUS EX-B760M-V5 D4 motherboard comes with a 3-year manufacturing warranty, ensuring peace of mind for users. It is widely available through online retailers and local distributors.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of ASUS EX-B760M-V5 in Bangladesh?

The best price of ASUS EX-B760M-V5 in Bangladesh is 16,300. You can buy the ASUS EX-B760M-V5 at best price from our website.
