Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳28,500
| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B860 Chipset | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm) |
|
| BIOS | 256(128+128) Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots |
|
| M.2 Socket | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2x DIMM slots | |
| Supported Memory | Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x HDMITM port Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A)** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C® power delivery output: max. 5V/3A. |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Back Panel I/O Ports 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMITM port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsinks design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

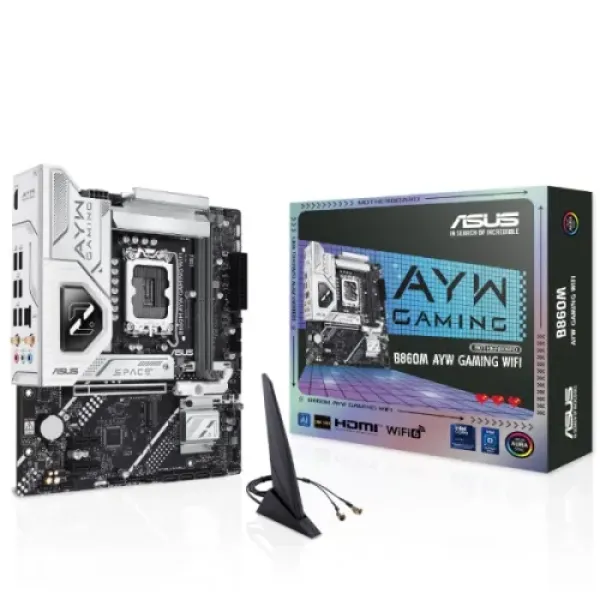

The ASUS B860M AYW GAMING WIFI is built for gamers and performance-driven users who want compact power without sacrificing features. Supporting Intel Core Ultra Processors (Series 2) on the LGA1851 socket, it ensures excellent processing speeds for gaming, multitasking, and creative workloads. With support for Intel Turbo Boost 2.0 and Turbo Boost Max 3.0, you get smoother gameplay, faster rendering, and improved responsiveness under heavy workloads. The Intel B860 chipset delivers next-gen performance while ensuring long-term reliability.
Designed with 2x DDR5 DIMM slots, this board supports up to 128GB RAM, with overclocking speeds reaching 8800+ MT/s (OC). ASUS Enhanced Memory Profile III (AEMP III) and Intel XMP support ensure stability when pushing RAM performance higher. For expansion, you get 1x PCIe 4.0 x16 slot for graphics cards and 2x PCIe 4.0 x1 slots for additional add-ons like capture cards or storage controllers. Gamers and streamers can count on rock-solid performance, even with intensive multitasking setups.
The motherboard includes an HDMI 2.1 port capable of outputting 4K at 60Hz, ensuring sharp visuals whether connected to a gaming monitor or a UHD TV. Integrated graphics support depends on the installed CPU, but with its PCIe slot, you’re free to add dedicated GPUs for gaming, editing, or 3D rendering. This makes it an ideal choice for both entry-level builds and high-performance gaming rigs.
Connectivity is future-proof with 6 rear USB ports (USB 10Gbps, USB 5Gbps, USB 2.0) and 7 front USB options, including USB Type-C with 5V/3A power delivery. Network performance is handled by Realtek 2.5Gb Ethernet with ASUS LANGuard, ensuring secure, low-latency connections. For wireless users, the board includes Wi-Fi 6 (802.11ax) and Bluetooth 5.3, giving you stable wireless performance for gaming, streaming, and peripherals.
With 2x M.2 slots and 4x SATA 6Gb/s ports, the ASUS B860M AYW gives users flexibility between lightning-fast NVMe SSDs and traditional hard drives. The M.2_1 slot supports PCIe 5.0 x4, delivering top-tier bandwidth for boot drives or game libraries, while the second M.2 slot runs PCIe 4.0 x4 for high-speed storage expansion. RAID 0/1/5/10 support via Intel Rapid Storage Technology ensures users can balance speed, capacity, and redundancy.
Equipped with the Realtek 7.1 Surround Sound High Definition Audio CODEC, this motherboard is ready for immersive gaming and entertainment. Premium features like audio shielding, dedicated PCB layers, and high-quality capacitors ensure clear sound with minimal interference. With 24-bit/192 kHz playback support, users enjoy crystal-clear in-game audio, music, and movie experiences for a more immersive setup.
Customization is powered by ASUS Aura Sync, letting you personalize your rig with synchronized RGB lighting across compatible components. The board also includes 3x Addressable Gen2 headers, giving more flexibility for RGB strips and accessories. Bundled software like Armoury Crate, Fan Xpert 2+, GlideX, and AI Advisor lets you control system performance, cooling, and lighting easily. Extras like WinRAR, Norton 360 trial, and ASUS CPU-Z enhance utility right out of the box.
The ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard is a compact yet powerful choice for gamers, creators, and performance users. Supporting Intel Core Ultra processors, DDR5 up to 128GB, PCIe 5.0 storage, Wi-Fi 6, and Aura Sync RGB, it packs advanced features into a small form factor. With strong connectivity, secure networking, and premium ASUS protections, it’s an excellent choice for building a reliable and stylish gaming rig.
