Basic Information | ||
Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* |
|
Chipset | AMD B850 Chipset | |
Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Memory | ||
Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) 3 x PCIe 4.0 x16 slot (support x1 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** 3 x PCIe 4.0 x16 slot (support x1 mode) * Please check the PCIe bifurcation table on the support site |
|
Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
|
Graphics | ||
Graphics | Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 8K@30Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1 |
|
Connector & Ports | ||
USB (s) | Rear USB (Total 9 ports) 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A |
|
LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
Wireless Communication module | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency |
|
Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C ) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
|
Warranty Details | ||
Warranty Details | 3 years |
When it comes to building a gaming or high-performance PC, yo

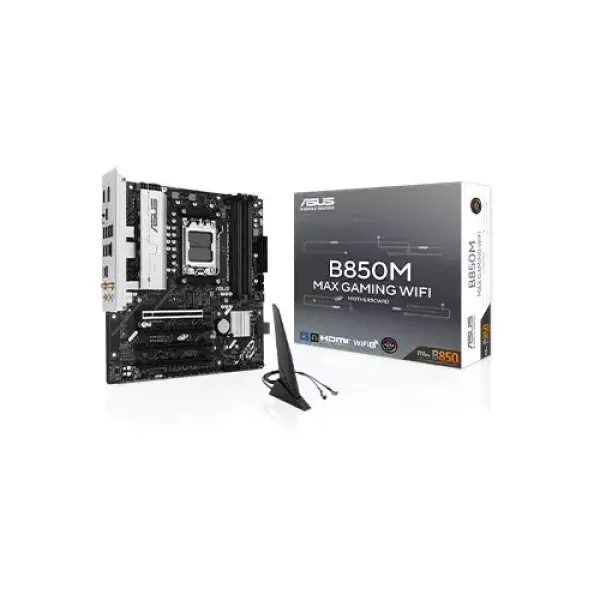

r motherboard is the command center. The Asus B850M MAX GAMING WIFI AMD DDR5 mATX Motherboard is designed to handle the latest AMD Ryzen 9000, 8000, and 7000 series processors, while also packing in DDR5 support, PCIe 5.0, WiFi 6, and robust overclocking features. In short, it’s a compact beast for gamers, creators, and power users.
Let’s break down everything this board has to offer and why it might just be the backbone of your next rig.
The AMD B850 chipset inside this motherboard ensures full compatibility with AMD Ryzen 9000, 8000, and 7000 series CPUs. That means you can push your rig to insane levels of performance, whether you’re gaming, streaming, or working on heavy creative workloads.
With support for PCIe 5.0 on Ryzen 9000/7000 processors, you get lightning-fast GPU and SSD speeds that can handle future hardware upgrades with ease. Even if you’re rocking Ryzen 8000, you’ll still benefit from PCIe 4.0 across multiple slots.
This motherboard features 4 DIMM slots supporting up to 256GB of DDR5 RAM—yes, 256GB in a compact mATX board! It also supports speeds of 8000+ MT/s (OC) with AMD EXPO™ profiles and ASUS AEMP for easy memory overclocking.
Thanks to dual-channel architecture and on-die ECC, you get faster, more stable, and more efficient performance, especially for gamers who stream or creators working with massive files.
The Asus B850M MAX comes with 3 M.2 slots + 4 SATA 6Gb/s ports, giving you flexibility for both blazing-fast NVMe SSDs and traditional hard drives.
M.2_1 slot: PCIe 5.0 x4 (with Ryzen 9000/7000 CPUs)
M.2_2 slot: PCIe 4.0 x4
M.2_3 slot: PCIe 4.0 x2
For RAID lovers, AMD RAIDXpert2 Technology lets you configure RAID 0/1/5/10 depending on your CPU generation. This is a dream setup for both speed junkies and data hoarders.
With a PCIe 5.0 x16 slot on Ryzen 9000/7000 processors, you can drop in the latest GPUs and be ready for 8K gaming, high-refresh-rate 4K, and VR. Ryzen 8000 CPUs still support PCIe 4.0 x16 (x8/x4 mode), so you’re never left behind.
Multiple PCIe 4.0 slots also mean you can add expansion cards, capture cards, or even a second GPU if you’re feeling old-school.
LAN: Realtek 1Gb Ethernet with ASUS LANGuard for low-latency, stable wired gaming.
Wi-Fi 6 (802.11ax): Super-fast wireless with dual 2.4/5GHz bands.
Bluetooth v5.4: Perfect for connecting wireless headsets, controllers, and peripherals.
No matter your setup, this motherboard ensures you’re always connected.
The Asus B850M MAX isn’t just powerful—it’s stylish and customizable. With Aura Sync RGB lighting and Addressable RGB Gen 2 headers, you can sync your entire rig’s lighting with your favorite effects.
Add in ASUS Q-Design features like Q-DIMM, Q-LED Core, and SafeSlot, and building becomes a smooth, hassle-free experience.
