Basic Information | ||
Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
Chipset | AMD B850 Chipset | |
Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
|
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
Expansion Slots | ||
PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) |
|
M.2 Socket | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
Memory | ||
Type | DDR5 | |
Slots | 2 x DIMM | |
Supported Memory | Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
Maximum Memory | 128GB | |
Graphics | ||
Graphics | 1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. |
|
Connector & Ports | ||
HDMI | 1x HDMI 2.1 | |
USB (s) | Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A |
|
LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
Wireless Communication module | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
|
Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
|
TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
Others | ||
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Pre-mounted I/O shield - BIOS FlashBack™ button - BIOS FlashBack™ LED - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
|
Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub TurboV Core ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
Warranty Details | ||
Warranty Details | 3 Years |

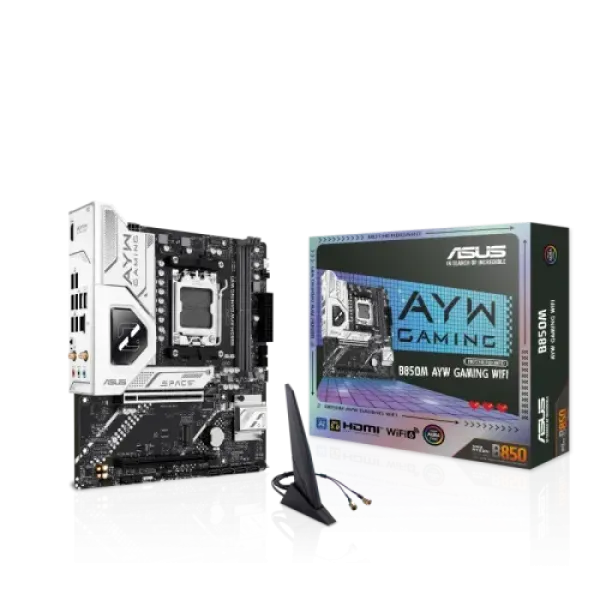

The ASUS B850M AYW GAMING WIFI motherboard is built for gamers and creators who want cutting-edge performance in a compact micro-ATX form factor. Powered by the AMD B850 chipset and supporting Ryzen 9000, 8000, and 7000 Series processors, this board ensures you’re ready for next-gen gaming, streaming, and content creation without compromise. With DDR5 memory support, PCIe 5.0 graphics capability, Wi-Fi 6, and high-speed storage options, this motherboard combines raw performance with modern features to deliver a smooth and future-proof experience.
Engineered for high-performance builds, the B850M AYW GAMING WIFI is designed to fully unleash the power of AMD’s latest processors. Gamers can take advantage of the PCIe 5.0 x16 slot when paired with Ryzen 9000 or 7000 Series CPUs, ensuring maximum bandwidth for next-gen GPUs. For Ryzen 8000 processors, PCIe 4.0 support provides a balanced mix of speed and efficiency. Memory performance is equally impressive with support for up to 128GB of DDR5 RAM, pushing speeds beyond 8400+ MT/s with overclocking. Whether you’re gaming at high refresh rates, running demanding creative applications, or multitasking across multiple workloads, this motherboard ensures stability and power at every step.
Storage options are plentiful, with dual M.2 slots and four SATA 6Gb/s ports, giving you flexibility for both ultra-fast NVMe SSDs and traditional HDDs. The primary M.2 slot supports PCIe 5.0 x4 for maximum speed on Ryzen 9000 and 7000 CPUs, while the secondary M.2 slot runs on PCIe 4.0. AMD RAIDXpert2 technology provides additional flexibility for setting up RAID arrays, supporting RAID 0, 1, 5, and 10 depending on the CPU you pair with the motherboard. This makes the B850M AYW an excellent choice for gamers, creators, and professionals who want both speed and redundancy in their storage solutions.
ASUS equips this board with Realtek 7.1 Surround Sound High Definition Audio, designed to deliver crisp and immersive audio for gaming, movies, and music. Features like premium audio capacitors, dedicated PCB layers, and shielding ensure clear sound with minimal interference. For visuals, the integrated HDMI 2.1 port supports up to 4K resolution at 60Hz, providing smooth and sharp display output for both work and entertainment setups.
Connectivity is one of the standout features of this motherboard. It comes with a total of eight rear USB ports, including two 10Gbps Type-A ports for high-speed data transfers, along with additional USB 5Gbps and USB 2.0 ports for peripherals. The front panel also supports USB 5Gbps connections, including a USB Type-C connector with up to 5V/3A power delivery for fast device charging. For networking, the B850M AYW GAMING WIFI offers Realtek 2.5Gb Ethernet with ASUS LANGuard for reliable wired performance, alongside Wi-Fi 6 and Bluetooth 5.3 for fast and stable wireless connectivity. This means you’ll always stay connected, whether you’re gaming online, streaming, or transferring large files across your network.
ASUS TUF engineering ensures this board is built to last. The VRM heatsink and M.2 heatsink design help maintain system stability during intense gaming sessions and heavy workloads. Additional safety features like DIGI+ VRM, stainless-steel back I/O, SafeSlot PCIe reinforcement, and overvoltage protection give you peace of mind knowing your system is protected. With multiple 4-pin fan headers available, users can build efficient and customizable cooling setups for optimal airflow inside compact micro-ATX cases.
ASUS includes a suite of software to help you get the most out of your build. Armoury Crate and Aura Creator give you easy control over RGB lighting and system monitoring, while Fan Xpert 2+ allows you to fine-tune your cooling. Tools like ASUS AI Advisor, TurboV Core, and DriverHub simplify system optimization and updates. Gamers and power users will also appreciate the inclusion of features like ASUS GlideX for device connectivity and CPU-Z for performance monitoring. To top it off, you get Norton 360 Deluxe with a 60-day free trial and WinRAR for 40 days, ensuring your system is secure and ready to go out of the box.
This motherboard is a perfect choice for gamers, streamers, and content creators who want a balance of compact design and premium performance. With support for AMD’s latest Ryzen 9000, 8000, and 7000 Series processors, PCIe 5.0 graphics, DDR5 memory, and dual M.2 slots, it’s built for speed and efficiency. Add in Wi-Fi 6, Bluetooth 5.3, 2.5Gb Ethernet, immersive audio, and customizable RGB lighting, and you have a motherboard that is both powerful and stylish.
