| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors | |
| Chipset | AMD B850 | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| M.2 Socket | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors |
|
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology | |
| Slots | 2 x DDR5 DIMM Slots | |
| Supported Memory | Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) Supports Extreme Memory Profile (XMP) and Extended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1 | |
| USB (s) | CPU: - 3 x USB 3.2 Gen1 Type-A (Rear) - 1 x USB 2.0 (Rear (USB_2)) Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 2 x USB 3.2 Gen1 Type-A (Front) - 5 x USB 2.0 (1 Rear (USB_1), 4 Front) |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless Communication module | - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.2 - Supports MU-MIMO |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1 x Front Panel Audio Connector | |
| Internal I/O Ports | Rear Panel I/O: - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Others | ||
| Special Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, Dr.MOS for VCore Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

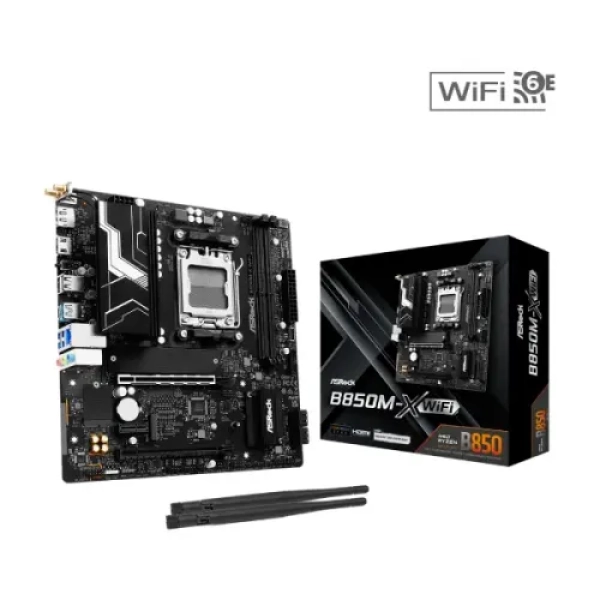

The ASRock B850M-X WiFi motherboard is designed for next-generation AMD Ryzen processors, offering strong power delivery, advanced connectivity, and high-speed DDR5 memory support. Built on the AM5 platform, this motherboard is ideal for gaming PCs, professional workstations, and high-performance home setups.
Supporting AMD Ryzen 7000 and 8000 Series processors, this motherboard ensures stable and efficient computing. The optimized VRM design helps maintain consistent power delivery, making it suitable for demanding gaming and productivity tasks.
The AM5 platform also provides long-term upgrade potential for future AMD processors.
With DDR5 memory compatibility, users benefit from higher bandwidth, improved efficiency, and faster system responsiveness. This results in smoother multitasking, improved gaming performance, and better overall system speed compared to previous-generation DDR4 motherboards.
The integrated WiFi module allows seamless wireless networking without the need for additional adapters. It also includes Gigabit LAN for stable wired internet connections, ensuring flexibility for different network setups.
Multiple USB ports and expansion slots allow easy connection of modern peripherals and storage devices.
The Micro-ATX form factor fits compact and mid-sized cases while offering essential expansion features:
PCIe slot for dedicated graphics card
M.2 slot for NVMe SSD storage
SATA ports for additional drives
High-speed USB connectivity
This makes it an excellent choice for gaming builds, office PCs, and content creation systems.
ASRock integrates high-quality components, reinforced PCIe slots, and efficient cooling solutions to ensure long-term durability. The motherboard is built to handle intensive workloads while maintaining stable performance.
Whether you are building a new system or upgrading to DDR5 and AM5, this motherboard delivers reliable performance and modern features.
Supports AMD AM5 Ryzen 7000 & 8000 Series
DDR5 high-speed memory support
Integrated WiFi connectivity
Micro-ATX compact design
PCIe expansion for graphics cards
M.2 NVMe SSD compatibility
Reliable and durable power design
1. Does this motherboard support Ryzen 7000 series processors?
Yes, it supports AMD Ryzen 7000 and 8000 Series processors with the AM5 socket.
2. Does it include built-in WiFi?
Yes, it comes with integrated WiFi support.
3. Can I use DDR4 RAM with this motherboard?
No, it supports DDR5 memory only.
4. Is it suitable for gaming?
Yes, with DDR5 support and PCIe expansion, it is ideal for modern gaming builds.
5. What case size is compatible?
It is a Micro-ATX motherboard and fits Micro-ATX and ATX cases.
