Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳21,120
| Basic Information | ||
| Supported CPU | Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) |
|
| Chipset | Intel B760 | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
|
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
|
| Audio | Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively. |
|
| Maximum Memory | 256GB | |
| Others | ||
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless Communication module | ||
| Supported Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks |
|
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Audio | ||
| Internal I/O Ports | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Others | Display Port (s) 1x DisplayPort | |
| Others | ||
| Special Features | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Bundled Software | Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer |
|
| Warranty Details | ||
| Warranty Details | 3 years Warranty |
|
| others | ||

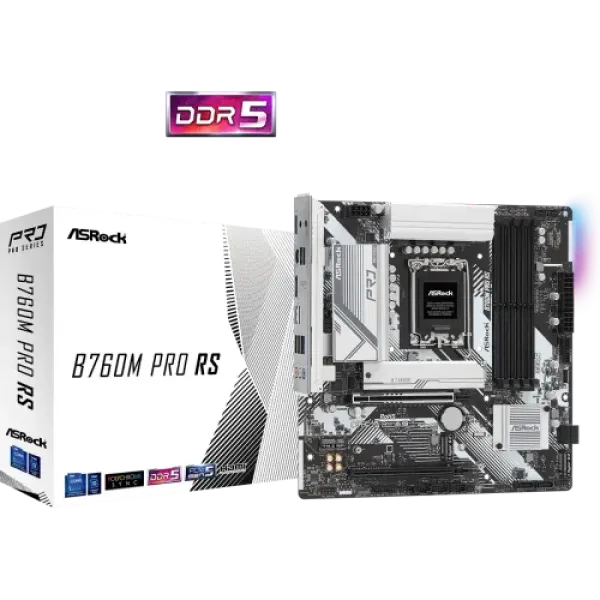

The ASRock B760M Pro RS DDR5 Micro ATX Motherboard is built to harness the power of Intel 14th, 13th, and 12th Gen Core processors, featuring an LGA1700 socket for exceptional computing performance. It supports four DDR5 memory slots with a maximum capacity of 256GB, enabling ultra-fast 7200+ MHz (OC) speeds to handle intensive workloads and high-end gaming effortlessly. The motherboard boasts HDMI and DisplayPort outputs, ensuring crisp and clear visuals for an immersive experience. Equipped with 2.5 Gigabit LAN, it offers high-speed internet connectivity, reducing lag for gaming and network-heavy applications. Its compact Micro ATX form factor makes it ideal for small yet powerful PC builds, offering ample expansion slots and future-proof features. Whether you're a hardcore gamer, content creator, or power user, the ASRock B760M Pro RS delivers top-tier performance, stability, and reliability, making it an excellent foundation for a next-generation PC build.
