| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 8000 & 7000 Series Processors |
|
| Chipset | AMD B650 |
|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | - Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | - 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
|
| LAN Port (s) | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|
| Wireless Communication module | - 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO |
|
| Supported Storage | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
|
| RAID | - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Special Features | Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN, 802.11ax Wi-Fi 6E Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
|
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |

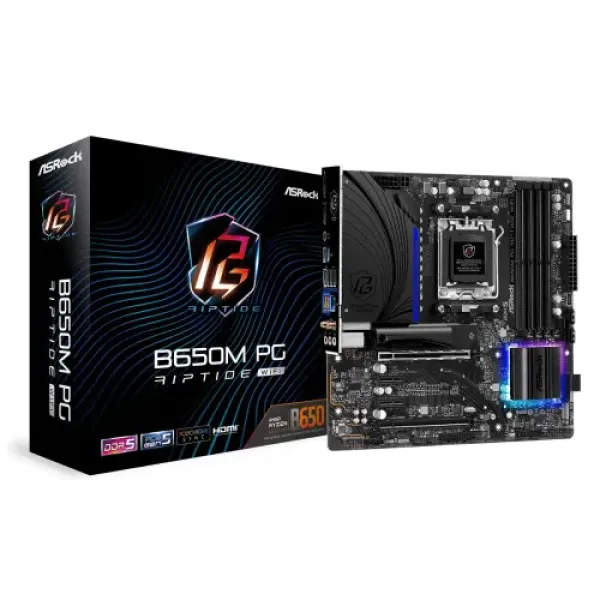

The ASRock B650M PG Riptide WiFi AM5 Micro ATX Motherboard is engineered for cutting-edge performance, supporting AMD Ryzen 8000 and 7000 Series processors with an AM5 socket. Featuring four DDR5 slots with a maximum capacity of 128GB and speeds up to 6200MHz (OC), it offers exceptional responsiveness for gaming, streaming, and productivity. This motherboard is equipped with PCIe 4.0 x16 slots, ensuring ultra-fast data transfer and superior graphics performance. Its built-in WiFi 6E (802.11ax) and Bluetooth 5.2 provide lightning-fast wireless connectivity, while the Dragon 2.5G LAN guarantees low-latency networking for online gaming. With HDMI and DisplayPort outputs, users can enjoy vivid 4K visuals for an immersive gaming or multimedia experience. Engineered for stability and efficiency, the ASRock B650M PG Riptide WiFi integrates advanced cooling solutions and optimized power delivery, making it a perfect choice for high-performance PC builds that demand speed, reliability, and future-ready technology.
