Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳9,240
| Basic Information | ||
| Supported CPU | - AMD AM4 Socket - Digi Power design - Supports CPU up to 105W |
|
| Chipset | - AMD Promontory B450 | |
| Form Factor | - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm |
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - SMBIOS 2.3 support |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot |
|
| M.2 Socket | - 1 x Screw for M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)* |
|
| Others | ||
| Memory | ||
| Type | - Dual Channel DDR4 Memory Technology | |
| Slots | - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots |
|
| Supported Memory | For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. | |
| Maximum Memory | ||
| Others | ||
| Graphics | ||
| Graphics | - Max Shared memory supports up to 16GB - The Max shared memory 16GB requires 32GB system memory installed. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | - 1 x HDMI Port | |
| USB (s) | - 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
| LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| Wireless Communication module | ||
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit |
|
| RAID | ||
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps |
|
| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x TPM Header | |
| Others | ||
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years warranty |
|
| others | ||

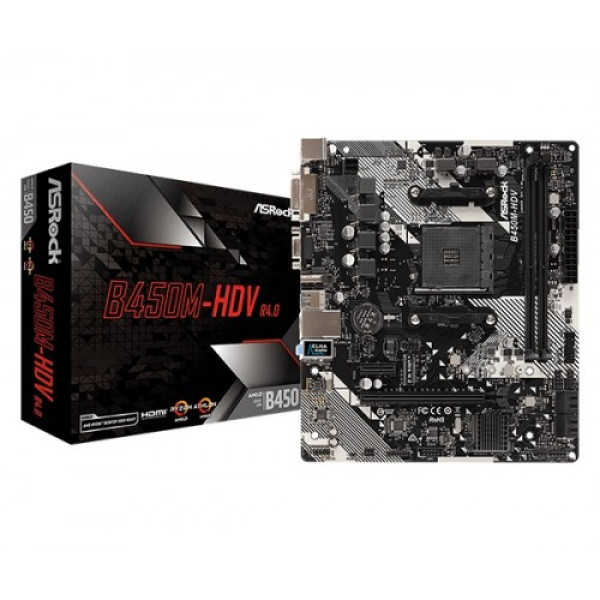

The ASRock B450M-HDV R4.0 AMD Motherboard is engineered for AMD Ryzen processors, offering a compact yet powerful Micro-ATX solution for gaming, content creation, and professional workloads. Powered by the AMD Promontory B450 chipset, this motherboard supports up to 32GB of DDR4 RAM, ensuring fast and stable system performance. It features one PCIe 3.0 x16 slot, enabling high-speed graphics card support, while an additional PCIe 2.0 x1 slot allows for expansion cards and additional connectivity options. Designed for Windows 10 (64-bit) systems, it ensures seamless driver compatibility and optimal efficiency. ASRock’s premium components, including solid capacitors and high-quality audio components, enhance system durability and audio clarity. Its Micro-ATX form factor makes it a perfect fit for compact PC builds without compromising performance or expandability. Whether you're a casual gamer, PC enthusiast, or professional user, the ASRock B450M-HDV R4.0 delivers reliable performance, stable overclocking support, and essential connectivity features at an affordable price.
